Check Door Lock and Unlock Switch
- CHECK DOOR LOCK AND UNLOCK SWITCH
With CONSULT-II

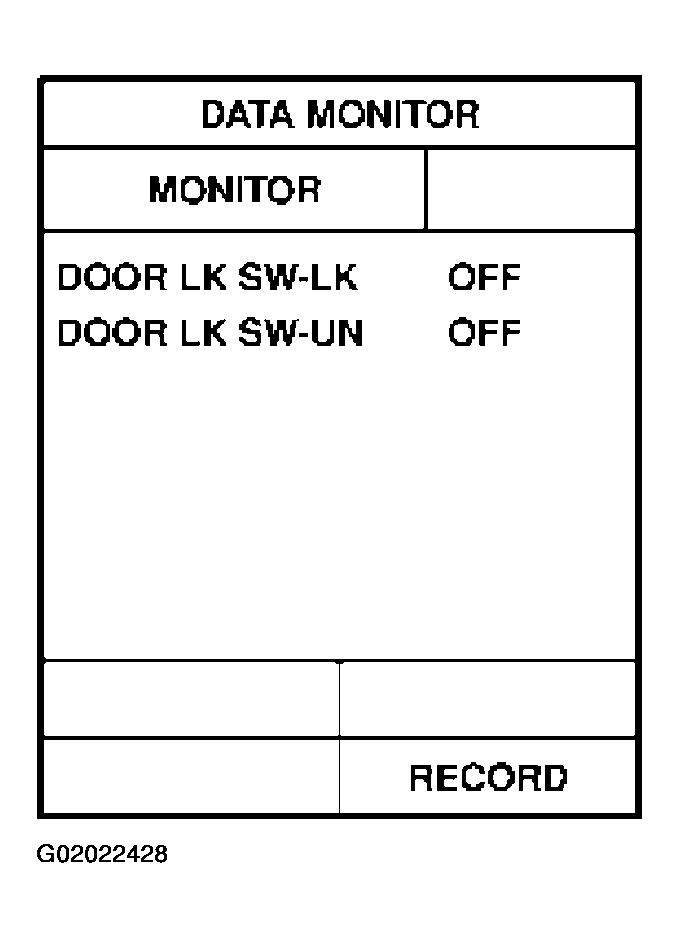

See "DOOR LK SW-LK and UN" in DATA MONITOR mode with CONSULT-II.
- When door lock and unlock switch is turned to lock:
- DOOK LK SW-LK : OFF --> ON
- When lock and unlock switch is turned to unlock:
- DOOK LK SW-UN : OFF --> ON
Without CONSULT-II
Check door lock and unlock switch operation is "SWITCH MONITOR" mode. Refer to "SWITCH MONITOR ".
OK or NG
OK >> Door lock and unlock switch is OK.
NG >> Replace door lock and unlock switch.
- When door lock and unlock switch is turned to lock:
