2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Check Communication Line
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK COMMUNICATION CIRCUIT
- Turn ignition switch OFF.
- Disconnect connectors for driver door control unit (LCU01) and malfunctioning door control unit.

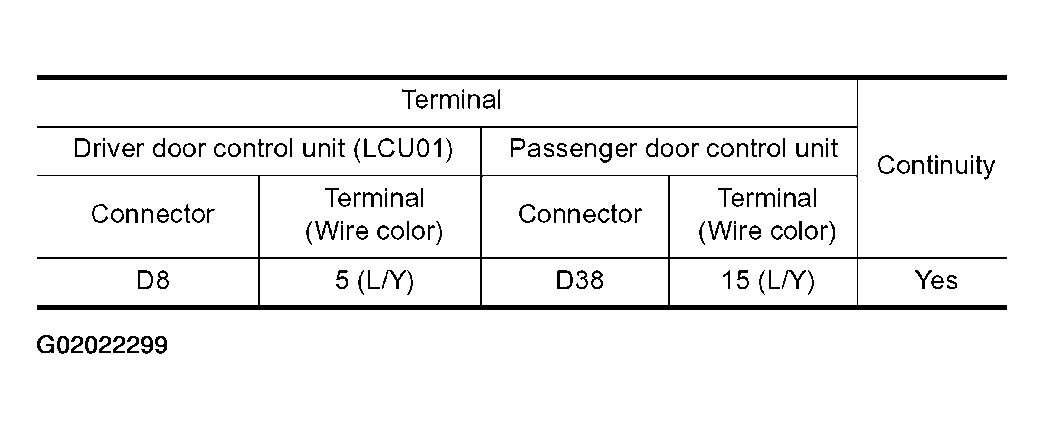

- Check continuity between driver door control unit (LCU01) connector terminal 5 and malfunctioning door control unit connector terminal 15.
