2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Consult-II Basic Operation Procedure
WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.

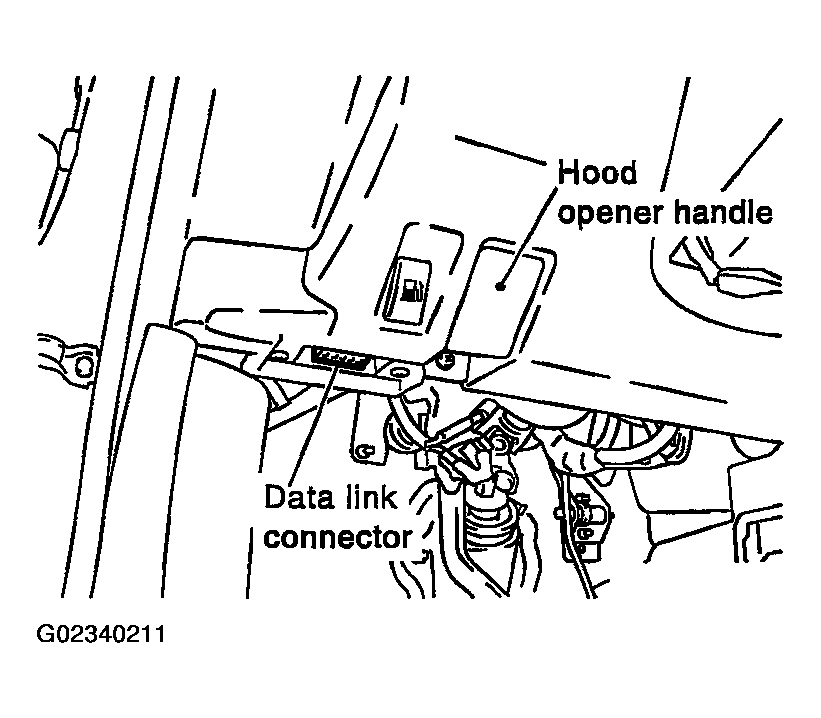

- Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.
- Turn ignition switch ON.

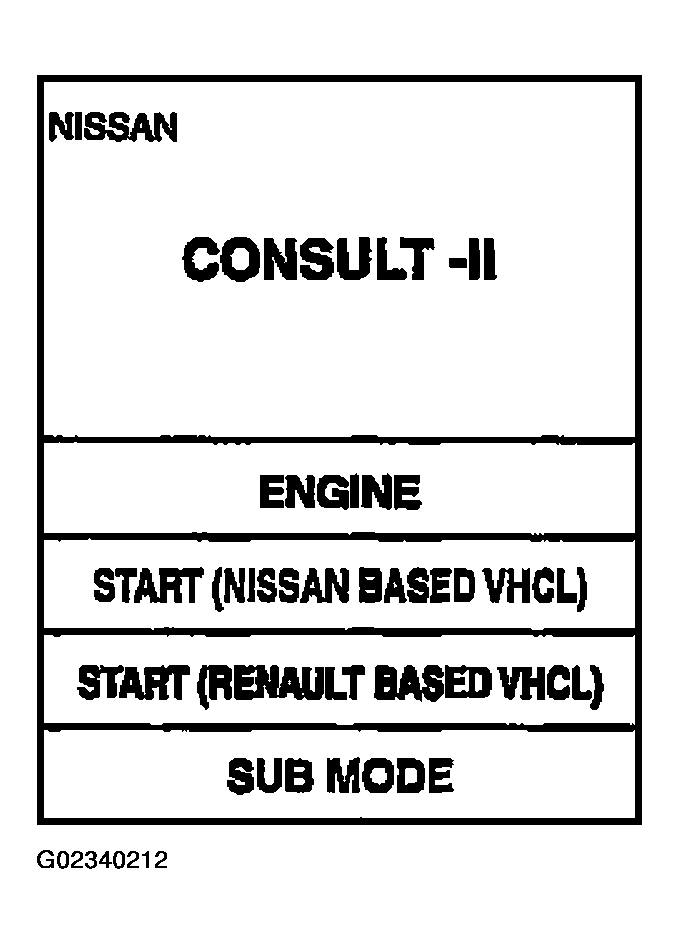

- Touch "START (NISSAN BASED VHCL)".

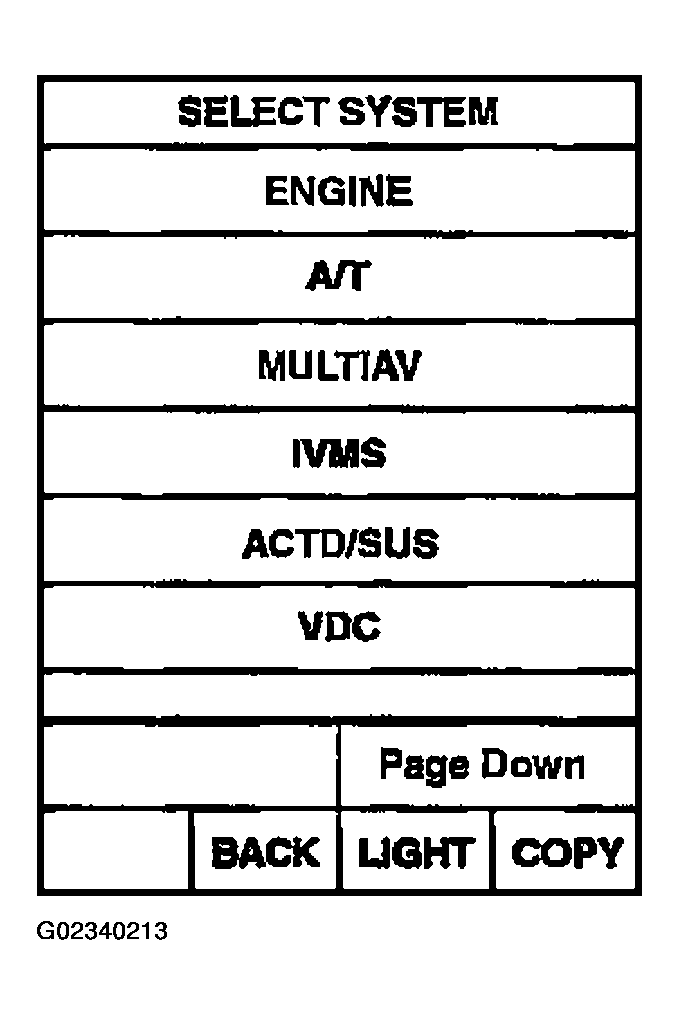

- Touch "IVMS" on the "SELECT SYSTEM" screen.

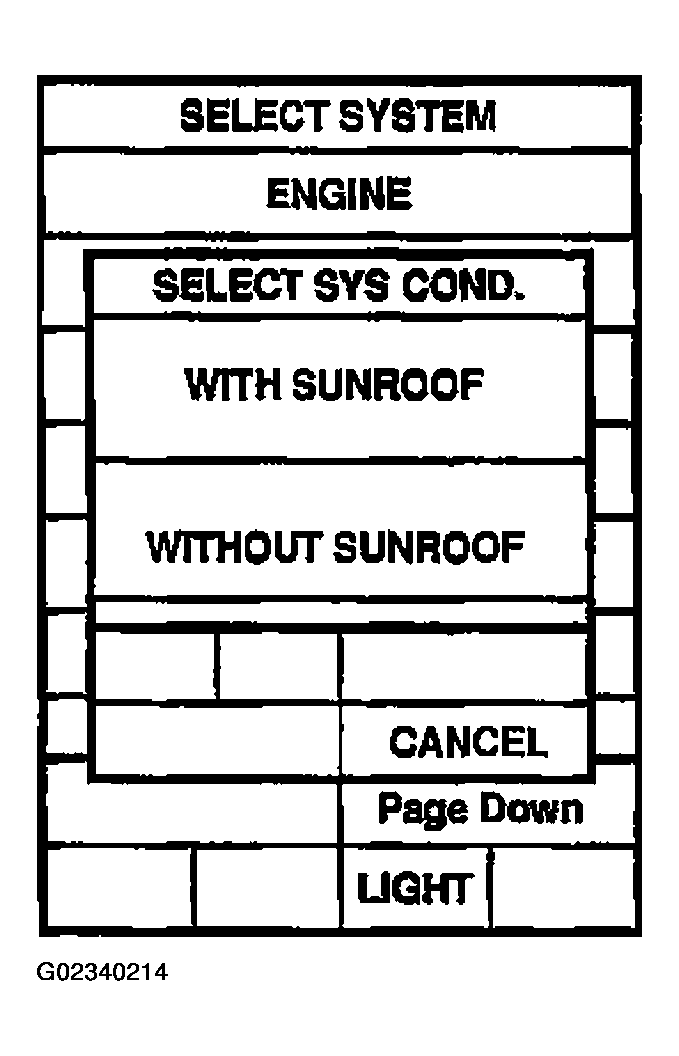

- Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYSCOND" screen.
- Touch "OK". If the selection is wrong, touch "CANCEL".
- Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
