Encoder Switch Check (Driver Side)

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check Front Power Window Regulator (Driver Side) Power Supply
    1. Turn ignition switch ON.
    2. Check voltage between driver door control unit (LCU01) connector D8 terminal 4 and ground.

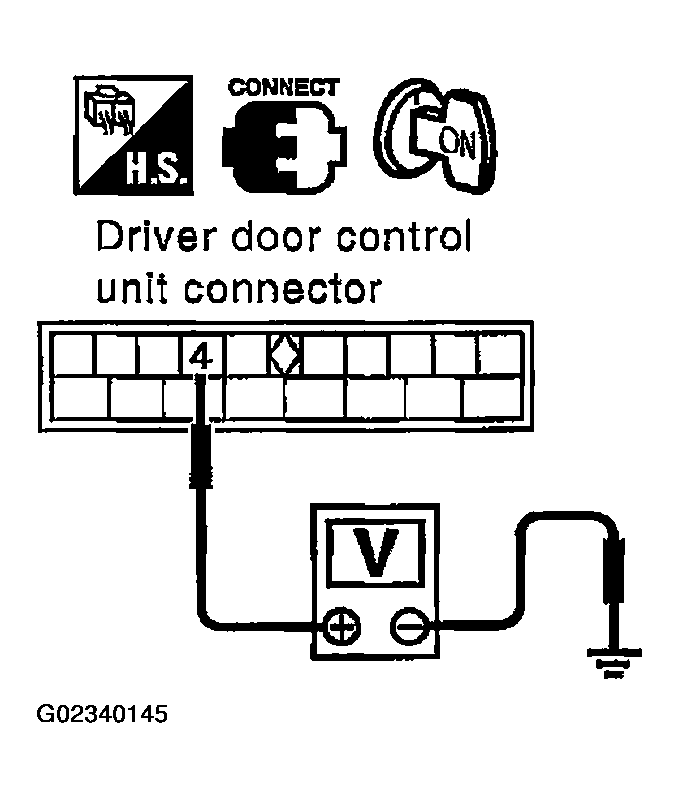

      Fig 1: Checking Front Power Window Regulator (Driver Side) Power Supply
      G02340145Courtesy of NISSAN MOTOR CO., U.S.A.
      1. 4 (W) - Ground: Approx. 10V

    OK or NG

    1. OK: Go to 2.
    2. NG: Replace driver door control unit (LCU01).

  2. Check Harness Continuity
    1. Turn ignition switch OFF.
    2. Disconnect driver door control unit (LCU01) and front power window regulator (driver side) connector.
    3. Check continuity between driver door control unit (LCU01) connector D8 terminal 4 and front power window regulator (driver side) connector D7 terminal 5.

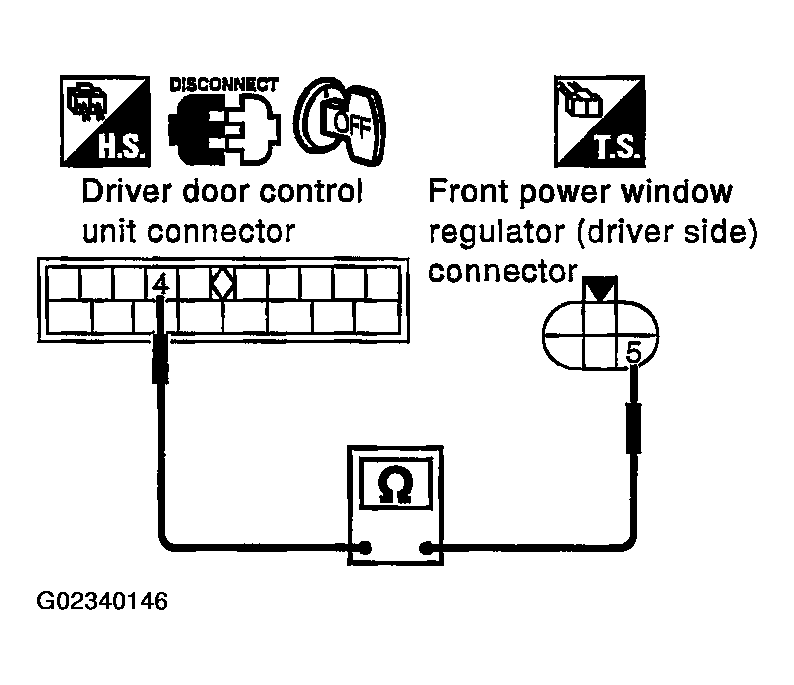

      Fig 2: Checking Circuit Continuity
      G02340146Courtesy of NISSAN MOTOR CO., U.S.A.
      1. 4 (W) - 5 (W): Continuity should exist.

    OK or NG

    1. OK: Go to 3.
    2. NG: Repair or replace harness between driver door control unit (LCU01) and front power window regulator (driver side).

  3. Check Encoder Ground

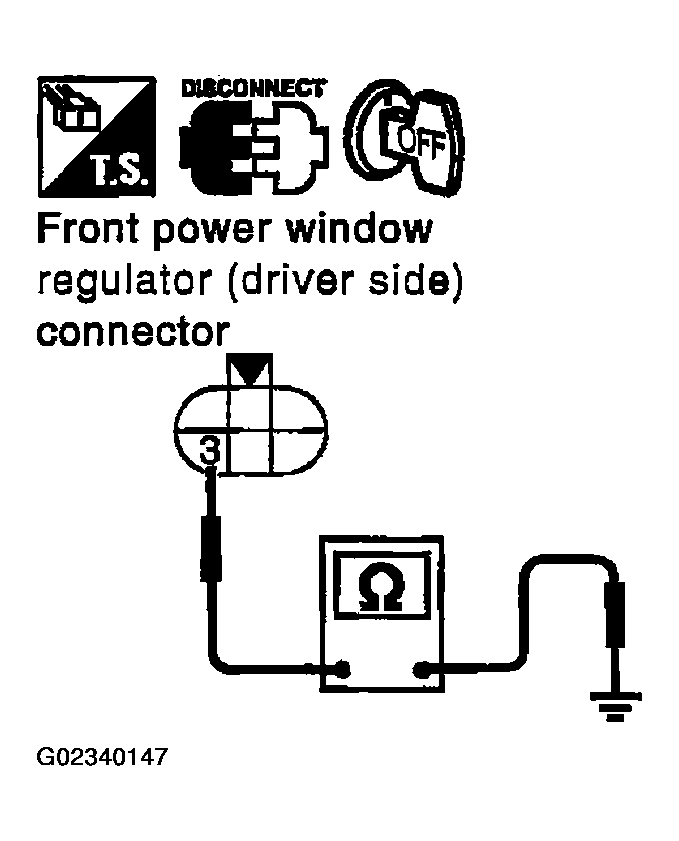

    Fig 3: Checking Encoder Ground
    G02340147Courtesy of NISSAN MOTOR CO., U.S.A.

    Check continuity between front power window regulator (driver side) connector D7 terminal 3 and ground.

    1. 3 (B) - Ground: Continuity should exist.

    OK or NG

    1. OK: Go to 4.
    2. NG: Repair or replace harness.

  4. Check Encoder Signal
    1. Connect driver door control unit (LCU01) and front power window regulator (driver side) connector.
    2. Turn ignition switch ON.
    3. Check the signal between driver door control unit (LCU01) connector and ground with oscilloscope.

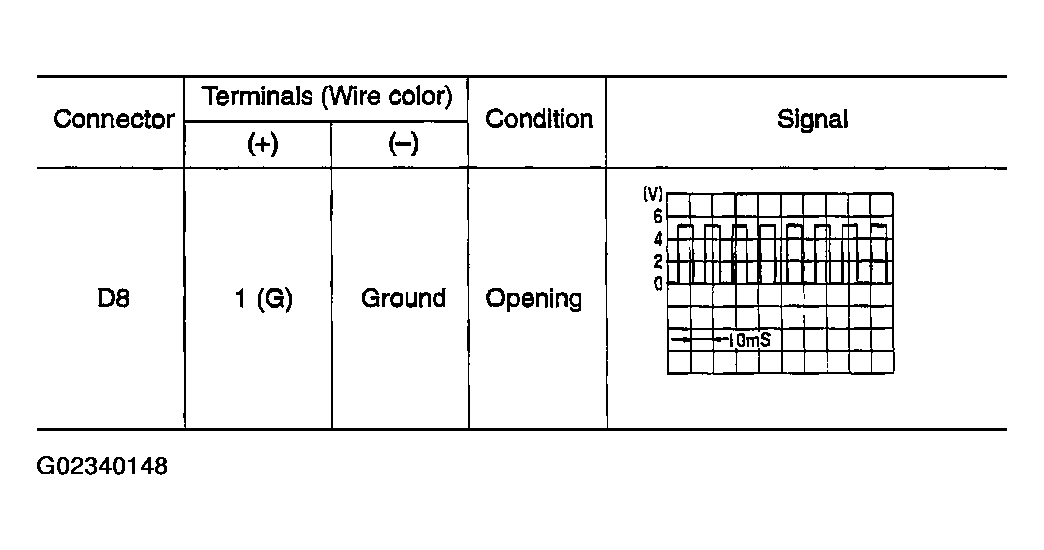

      Fig 4: Terminals Connector Condition Signal Chart
      G02340148Courtesy of NISSAN MOTOR CO., U.S.A.
