Description
- BCM reads combination switch (light, wiper washer, turn signal) status, and controls various electrical components according to the results.
- BCM reads information of 20 switches and 5 diagnostic results by combining five output terminals (OUTPUT 1 - 5) and five input terminals (INPUT 1 - 5).
Operation description
- BCM outputs battery voltage from input terminals (INPUT 1 - 5) all the time. At the same time output terminals (OUTPUT 1 - 5) activate transistors in turn, and allow current to flow. At this time, if any (1 or more) of the switches are ON, the input terminals corresponding to these switches detect current flow, and the interface of BCM detects the condition. Then BCM judges switches are ON.

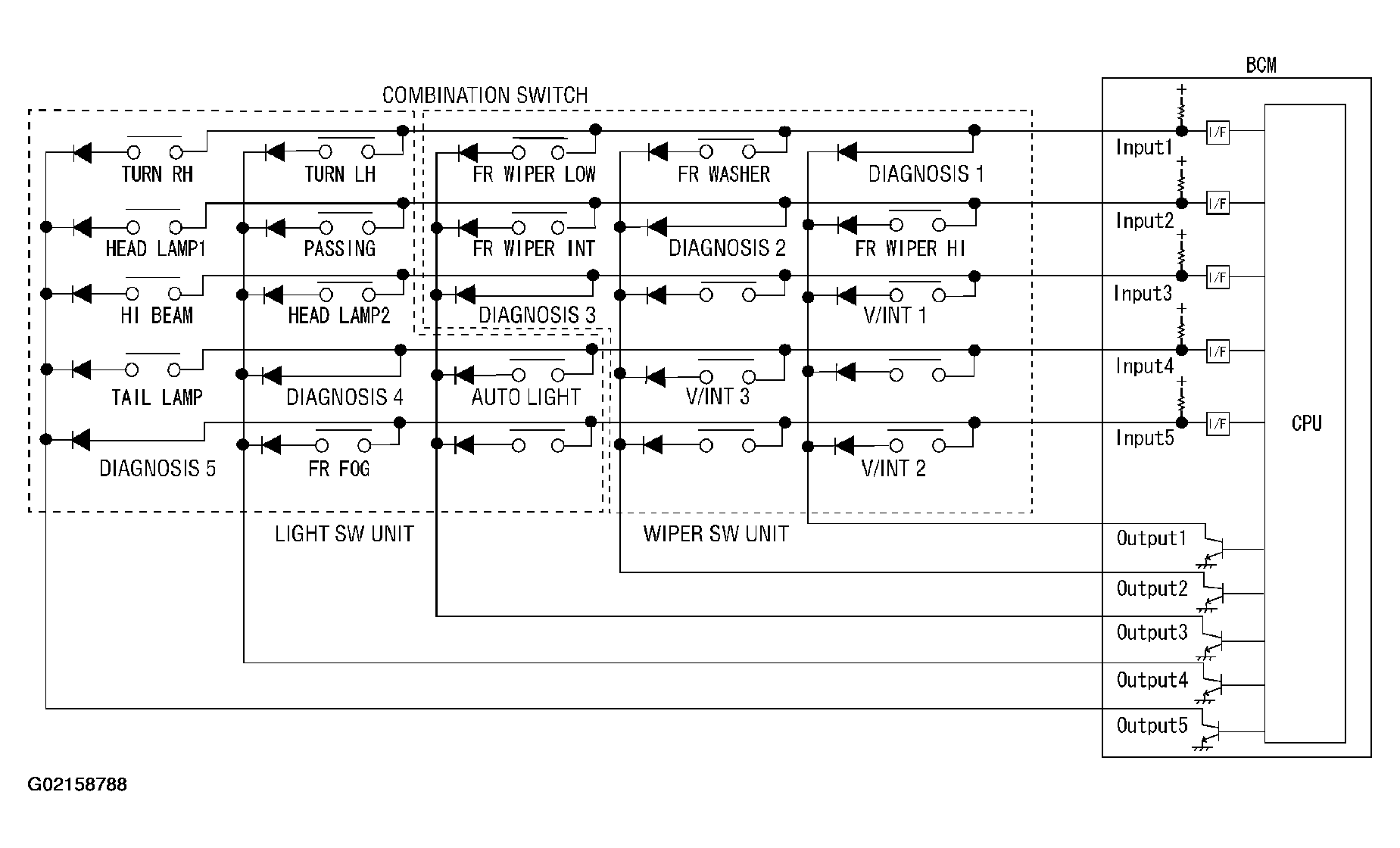

Fig 1: BCM - Operation Description Wiring Diagram Of Combination Switches
Courtesy of NISSAN MOTOR CO., U.S.A.
BCM - Operation table of combination switches
- BCM reads operation status of combination switches by the combination shown in the table.

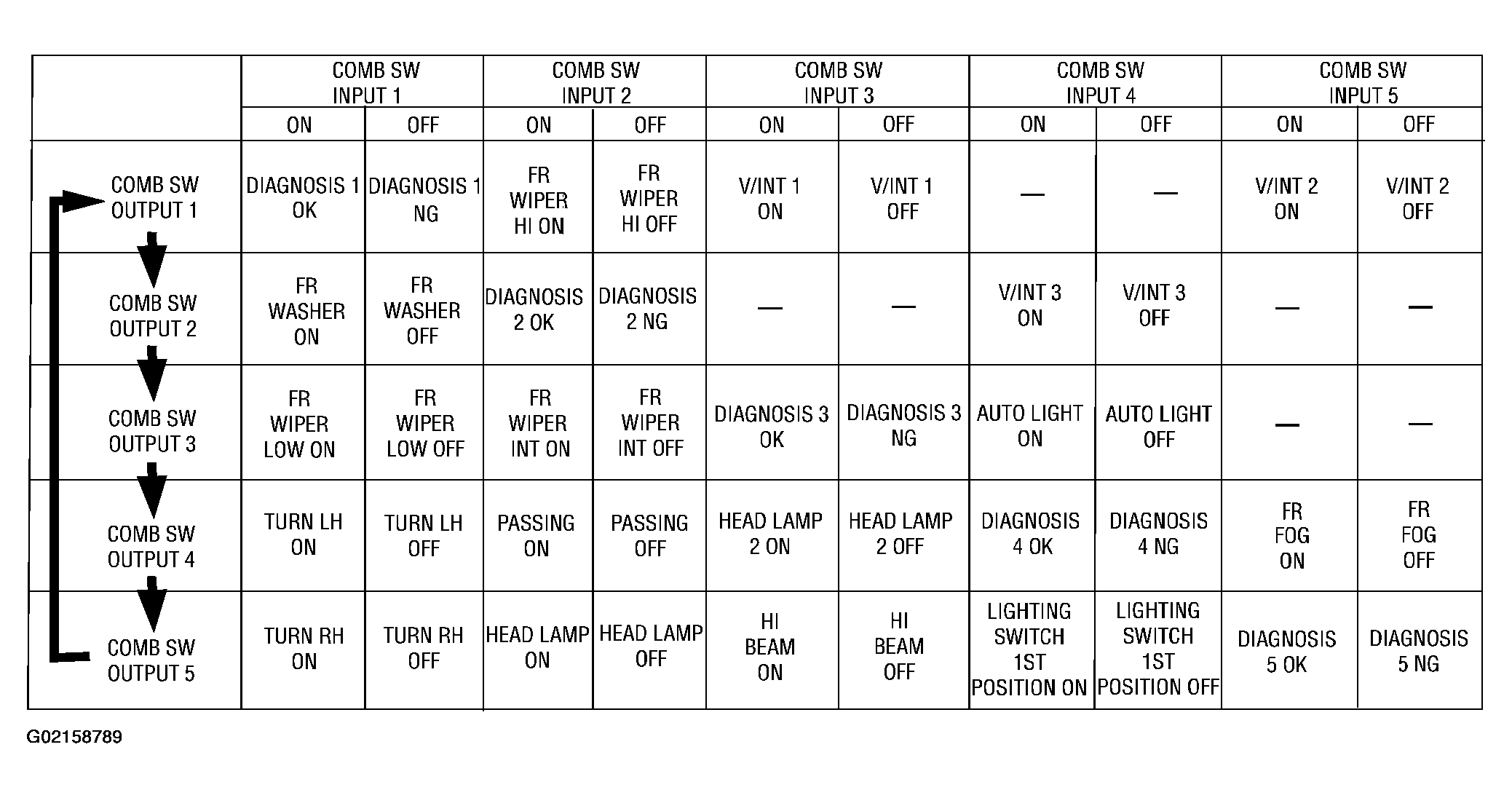

Fig 2: BCM - Operation Table Of Combination Switches
Courtesy of NISSAN MOTOR CO., U.S.A.
