2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Removal And Installation Of BCM: Removal
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the dash side finisher. Refer to BODY SIDE TRIM in Exterior/Interior.
- Disconnect BCM connector.

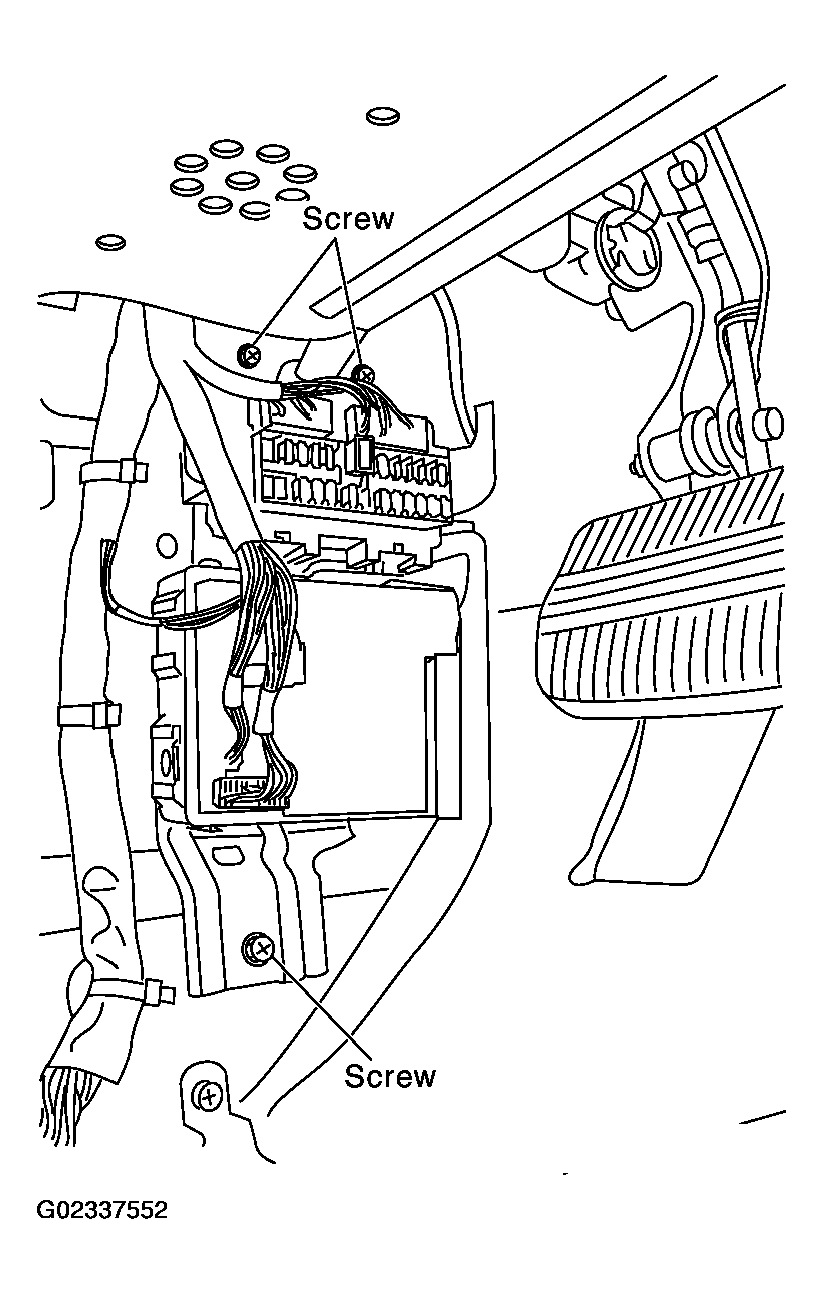

- Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

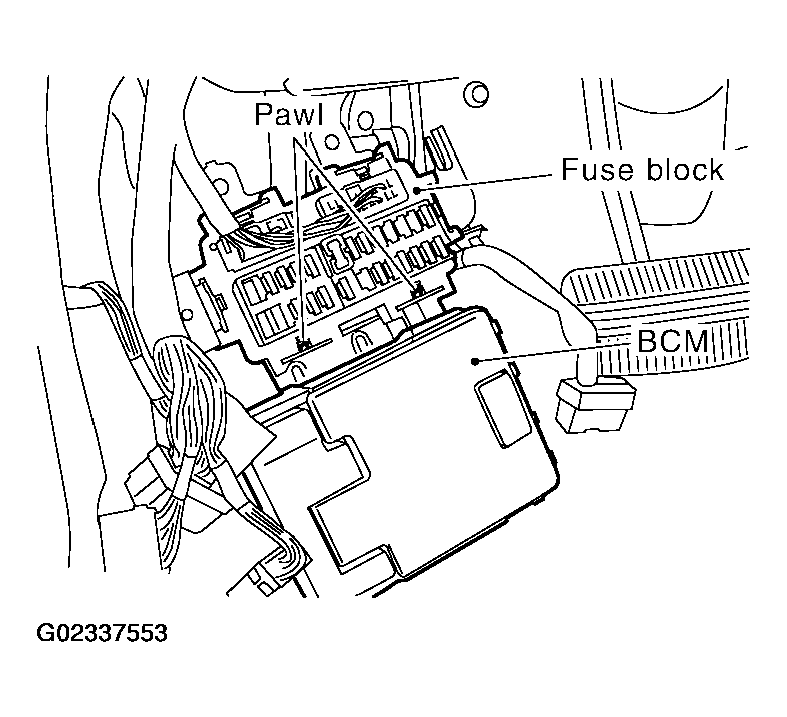

- Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.
