CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

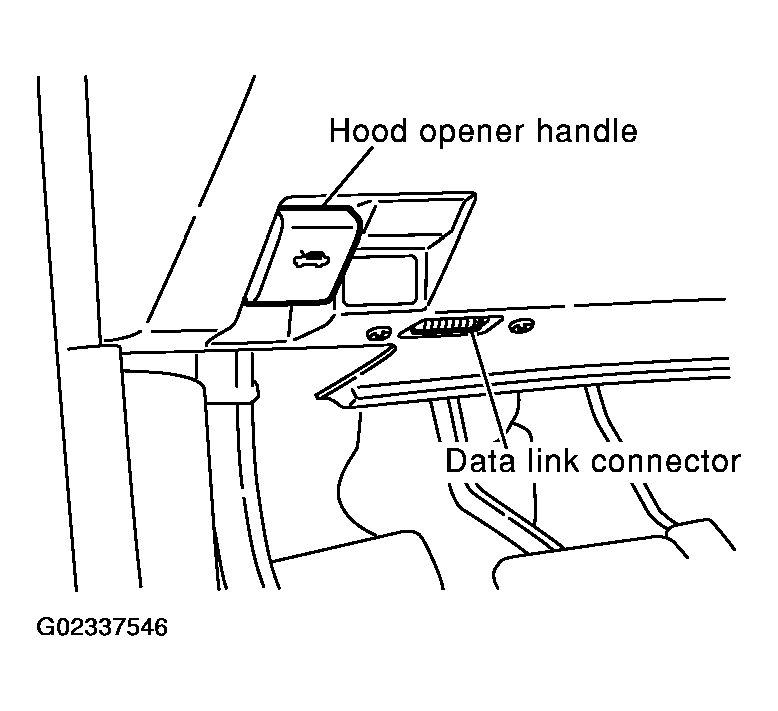

Fig 1: Locating Hood Opener Handle & Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START (NISSAN BASED VHCL).

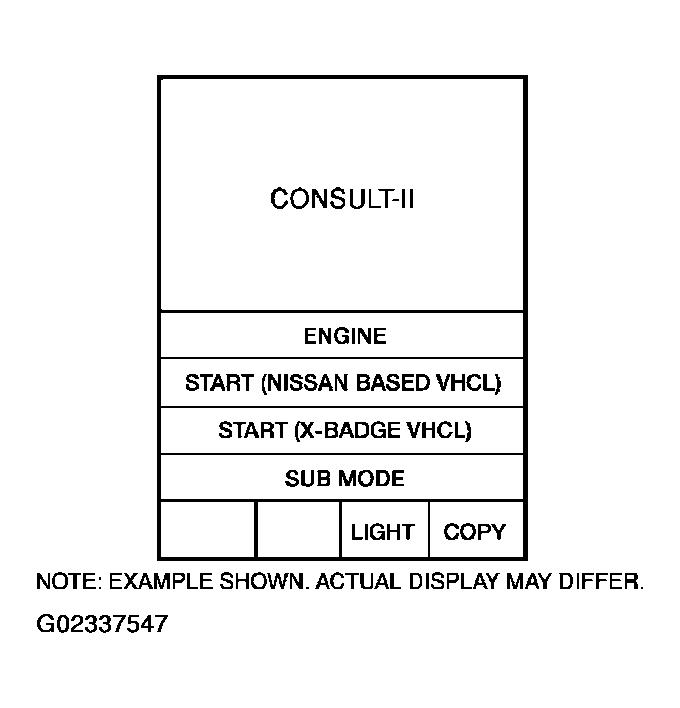

Fig 2: Displaying CONSULT II Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM" on SELECT SYSTEM" screen. If BCM" is not indicated, refer to . CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

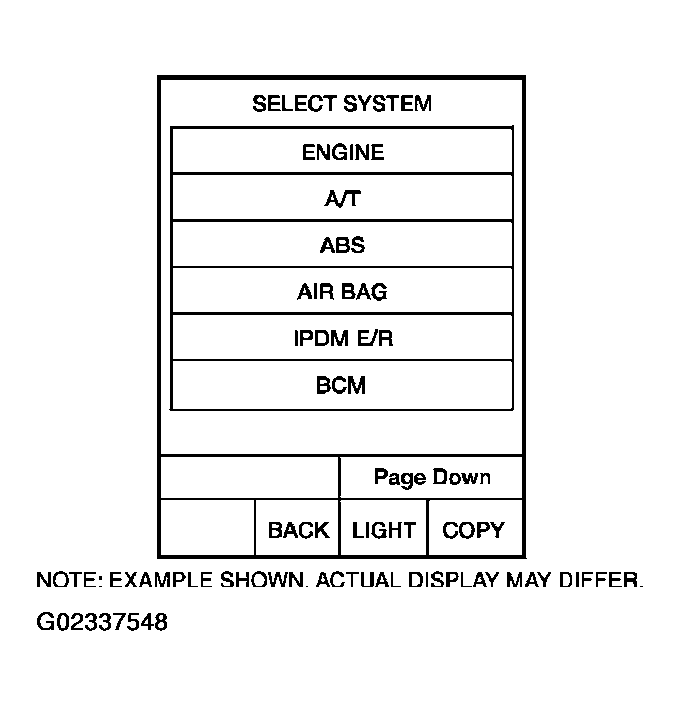

Fig 3: Displaying Select System Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the SELECT TEST ITEM" screen.

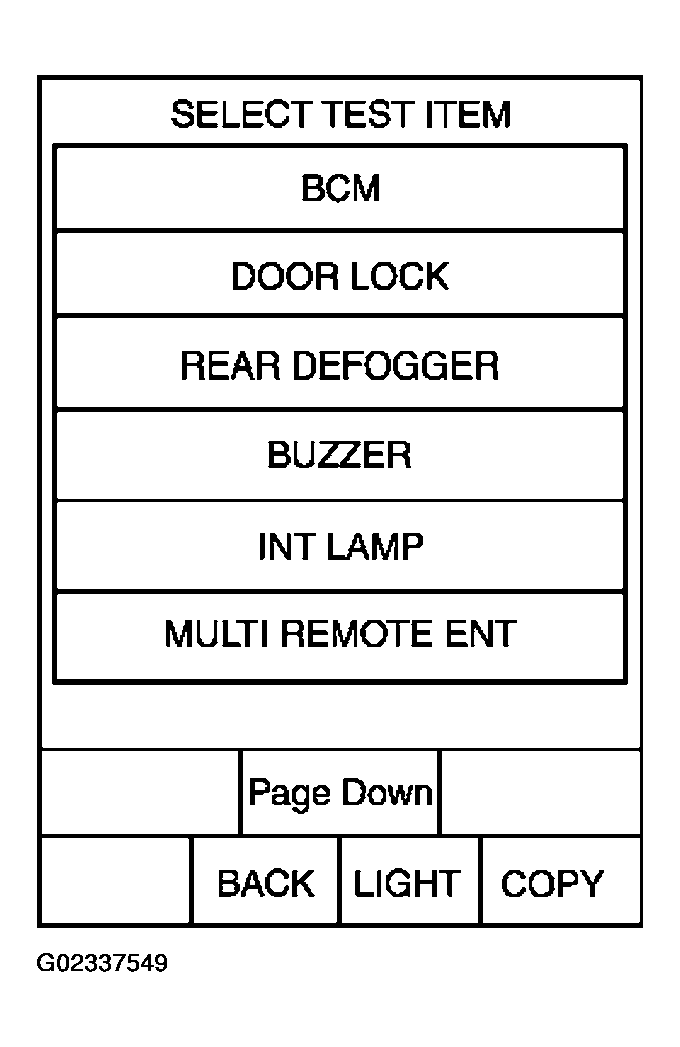

Fig 4: Select Test Item Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
