CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)
- CHECK SELF-DIAGNOSTIC RESULT CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
- Connect to CONSULT-II, and select BCM" on SELECT SYSTEM" screen.
- Select BCM control unit" on SELECT WORK ITEM" screen, and select SELF-DIAG RESULTS.
- Check display content in self-diagnostic results.

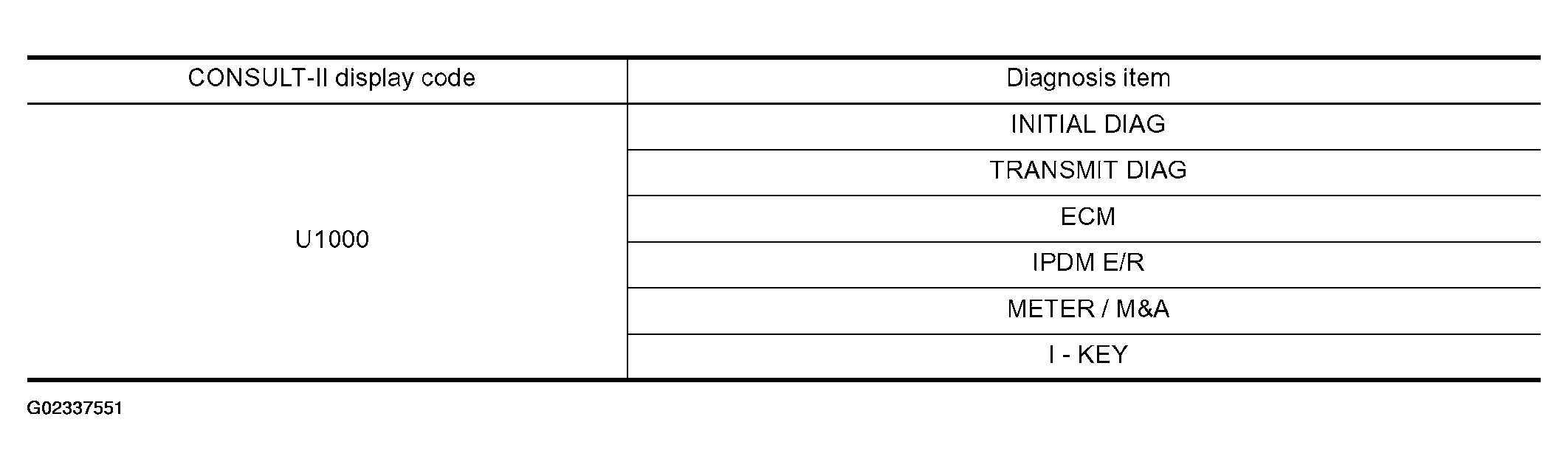

Contents displayed
No malfunction: INSPECTION END
Malfunction in CAN communication system: After printing the monitor items, go to CAN System. Refer to PRECAUTIONS WHEN USING CONSULT-II .
