2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Check Key Switch

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II

Check ignition key switch "KEY ON SW" in "DATA MONITOR" mode with CONSULT-II.
- When key is inserted in ignition key cylinder
  KEY ON SW: ON
- When key is removed from ignition key cylinder
  KEY ON SW: OFF

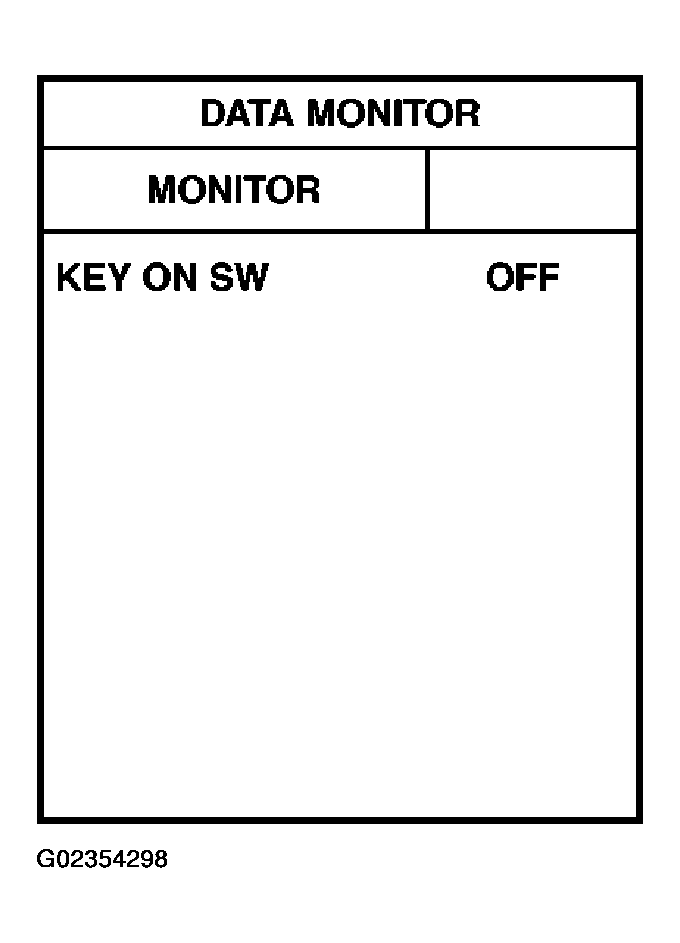

  Fig 1: CONSULT-II Data Monitor Display
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Check voltage between BCM connector and ground.

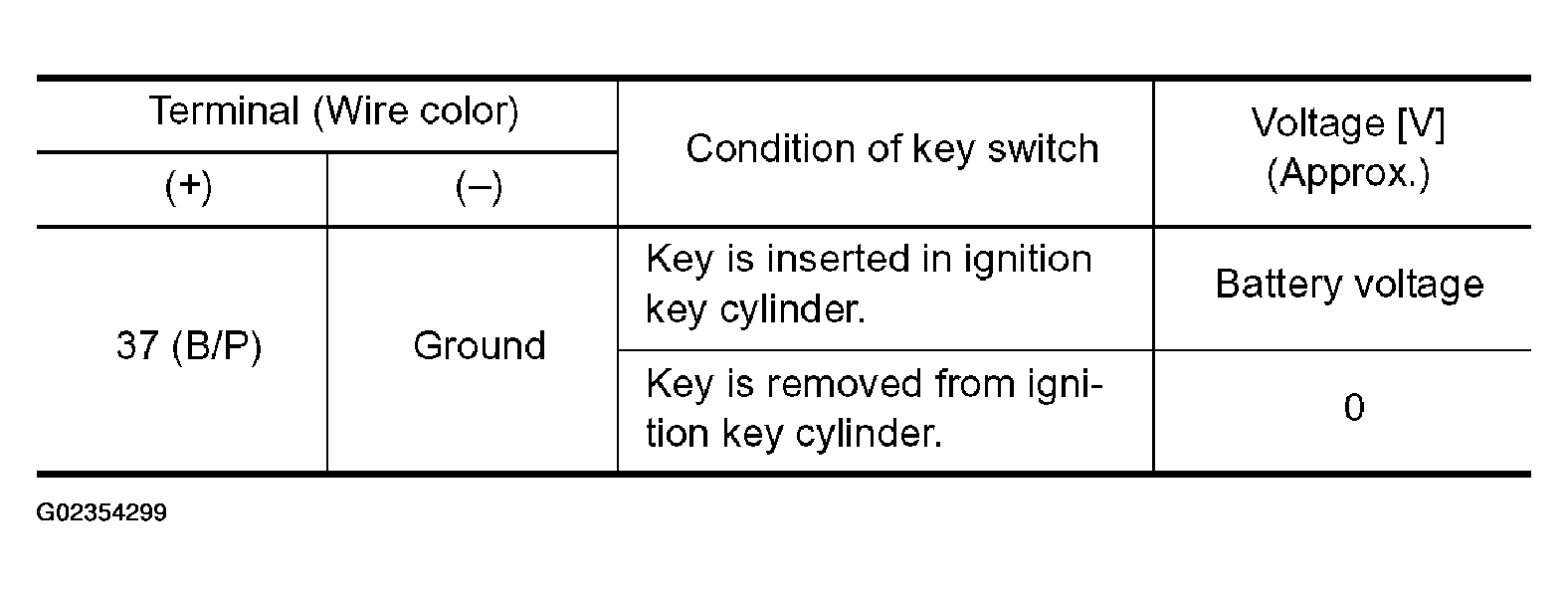

Fig 2: BCM Connector And Ground Voltage Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Chapter Navigation

Return to Chapter: Remote Keyless Entry System
