2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
EVAP Control System Pressure Sensor
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
- Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.

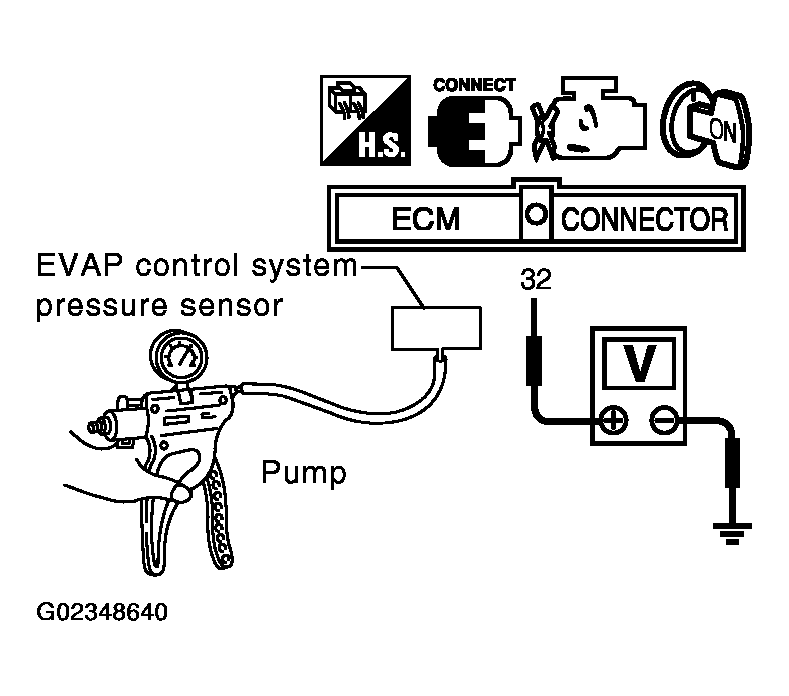

- Install a vacuum pump to EVAP control system pressure sensor.
- Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.EVAP CONTROL SYSTEM PRESSURE SENSOR CONDITION CHECK
Applied vacuum kPa (mmHg, inHg) Voltage V Not applied 1.8 - 4.8 -26.7 (-200, -7.87) 2.1 to 2.5V lower than above value CAUTION:- Always calibrate the vacuum pump gauge when using it.
- Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
- If NG, replace EVAP control system pressure sensor.
