2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Stop Lamp Switch
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

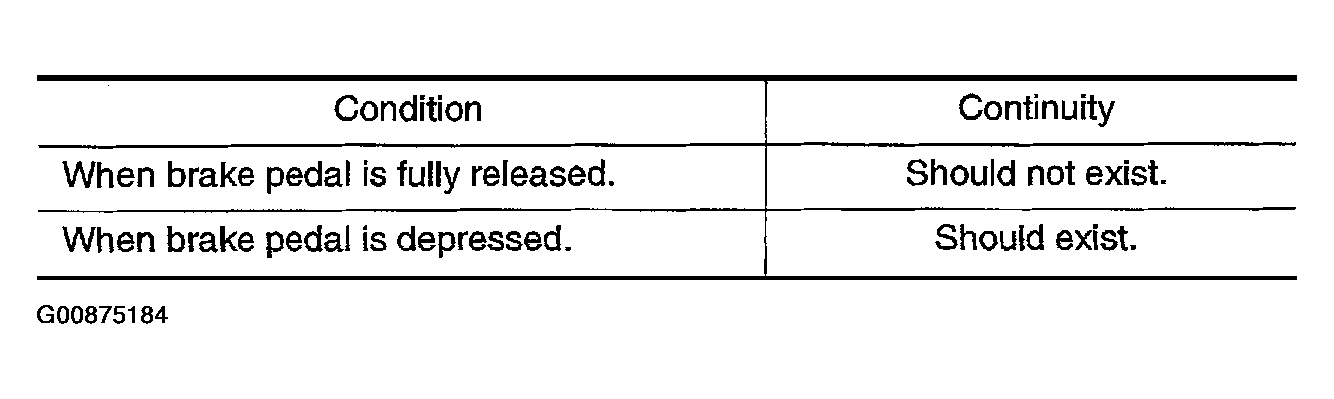

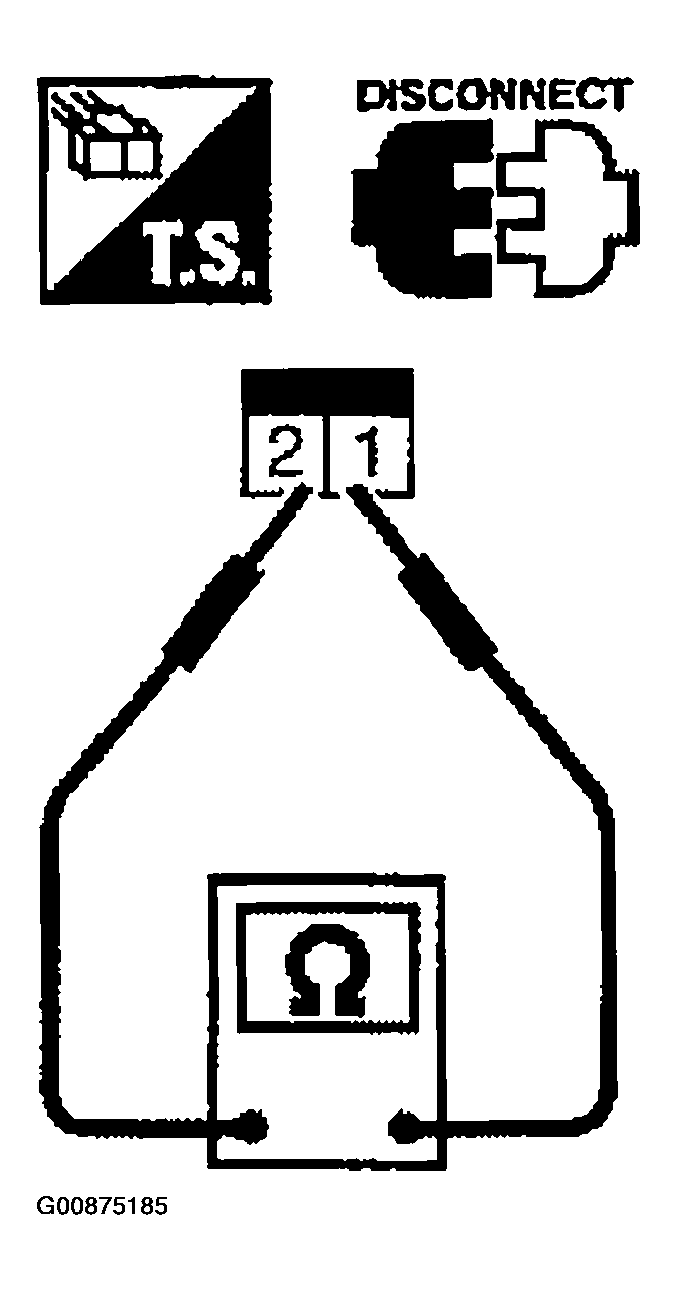

- Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL "ADJUSTMENTS ", and perform step 3 again.
