2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Procedure 2 (With Consult-II)

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use. When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.
  1. Turn ignition switch OFF.
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector. See Figure .
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".
  5. Touch "IVMS".

    If "IVMS" is not indicated, go to CONSULT-II Data Link Connector (DLC) Circuit .

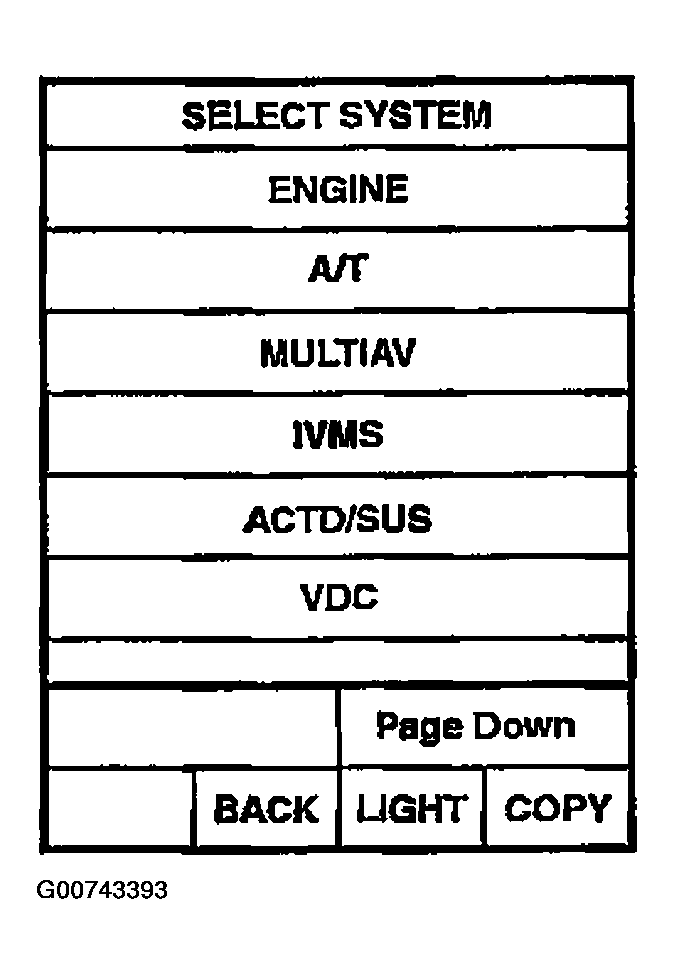

    Fig 1: View Of Consult-II Screen
    G00743393Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  7. Touch "OK." If the selection is wrong, touch "CANCEL".
  8. Touch "MULTI-REMOTE CONT SYS".
  9. Touch "WORK SUPPORT".
  10. The item shown on the figure at right can be set up.
    • "REMO CONT ID CONFIR"

      Use this mode to confirm if a electronic key ID code is registered or not.

    • "REMO CONT ID REG"

      Use this mode to register a electronic key ID code.

      NOTE: Register the ID code when electronic key or BCM is replaced, or when additional electronic key is required.
    • "REMO CONT ID ERASUR"

      Use this mode to erase a electronic key ID code.
