Consult-II Basic Operation Procedure

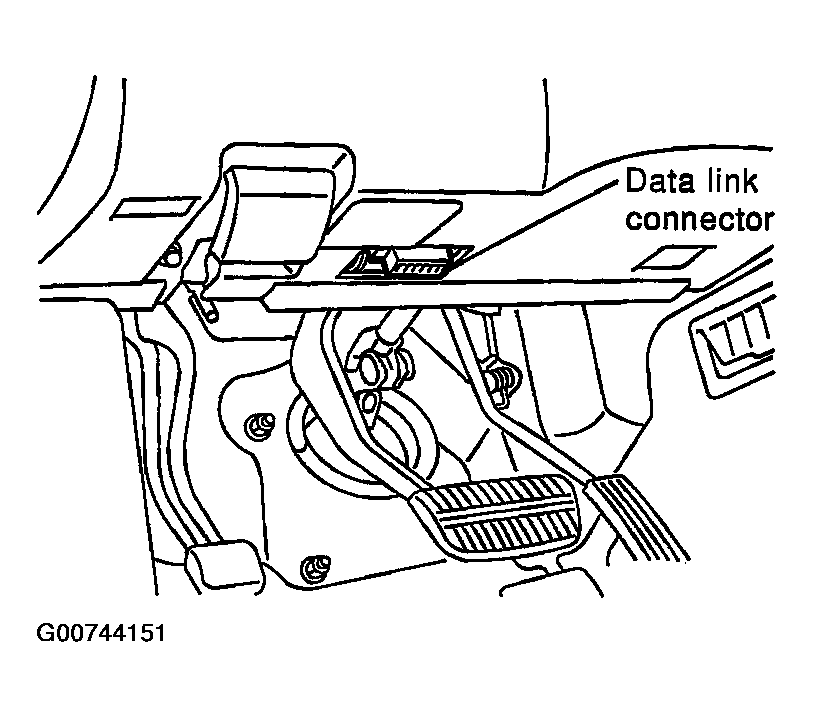

- With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector on vehicle side, and turn the ignition switch ON.
- Touch "START (NISSAN BASED VHCL)".
- Touch "IVMS".
If "IVMS" is not indicated, go to CONSULT-II Data Link Connector (DLC) Circuit .
- Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
- Touch "OK". If the selection is wrong, touch "CANCEL".
- Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
