2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Consult-II Main Function

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

In a diagnosis function (main function), there are "WORK SUPPORT", "SELF-DIAGNOSTIC RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR", "ACTIVE TEST", "FUNCTION TEST", "ECU PART NUMBER".

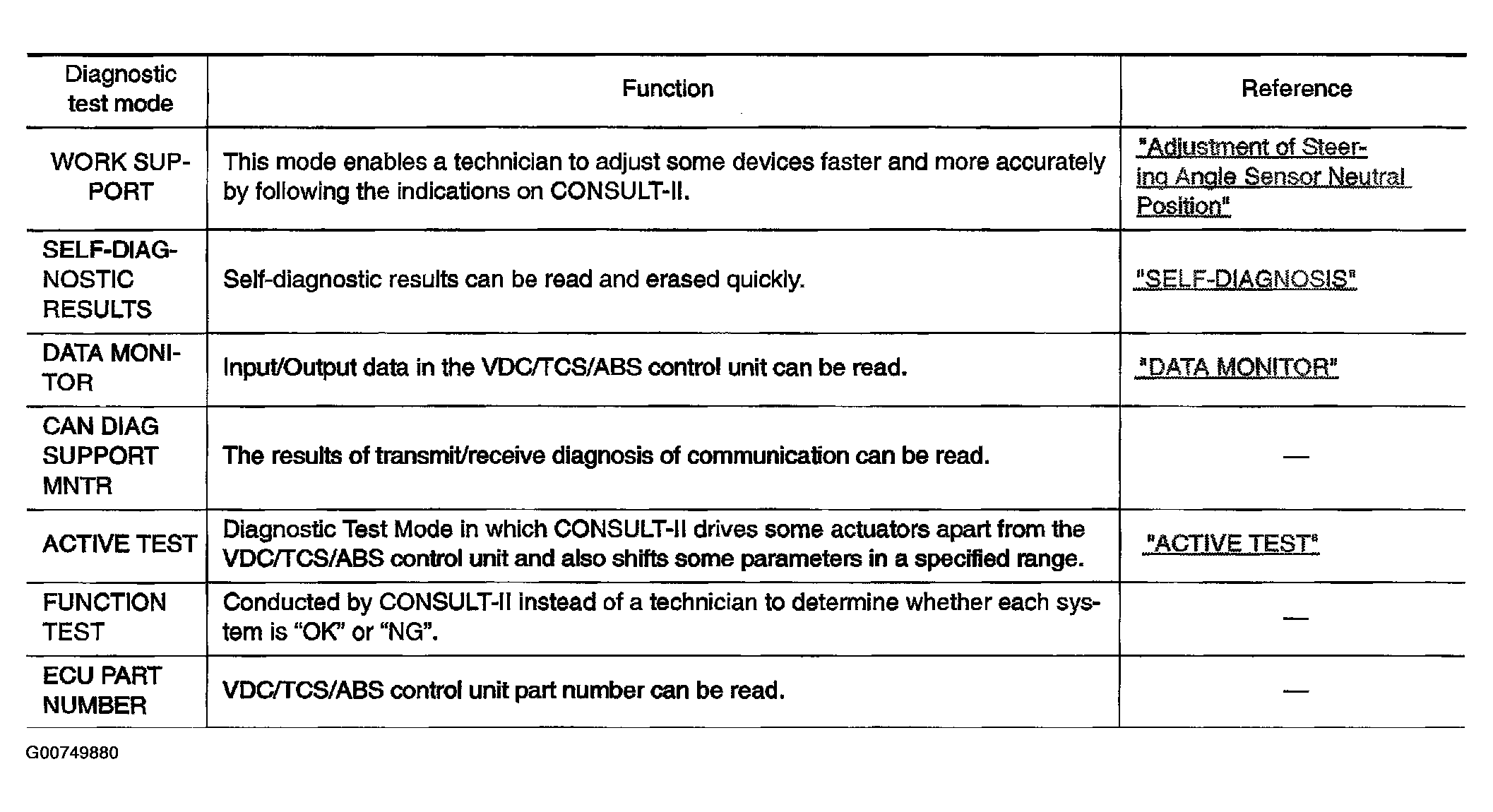

Fig 1: Determining Diagnosis Based On CONSULT-II Data

Courtesy of NISSAN MOTOR CO., U.S.A.
