2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Total Preload
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Turn drive pinion in both directions several times to set bearing rollers.

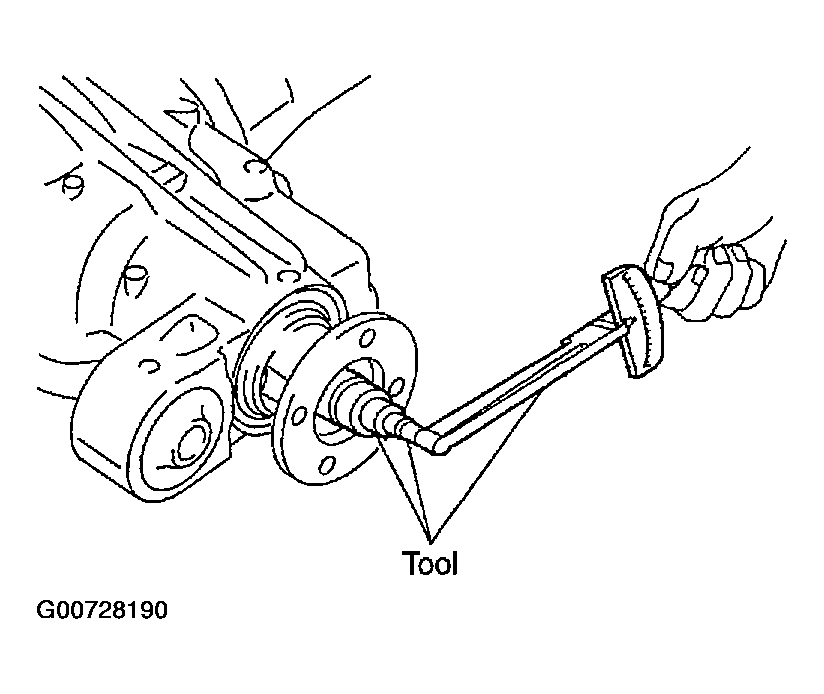

- Check total preload using Tool.
Tool number :ST3127S000 (J25765-A)
Total preload (with oil seal)
Gear ratio 2.937 Type:
3.09 - 4.87 N.m (0.32 - 0.49 Kg-m, 28 - 43 in-lb)
Gear ratio 3.357 Type:
2.98 - 4.76 N.m (0.31 - 0.48 Kg-m, 27 - 42 in-lb)
