2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Adjustable Accelerator Pedal Assembly: Removal
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Move the accelerator and brake pedals to the frontmost position.
- Turn the ignition switch OFF and disconnect the negative battery terminal.
- Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
- Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.

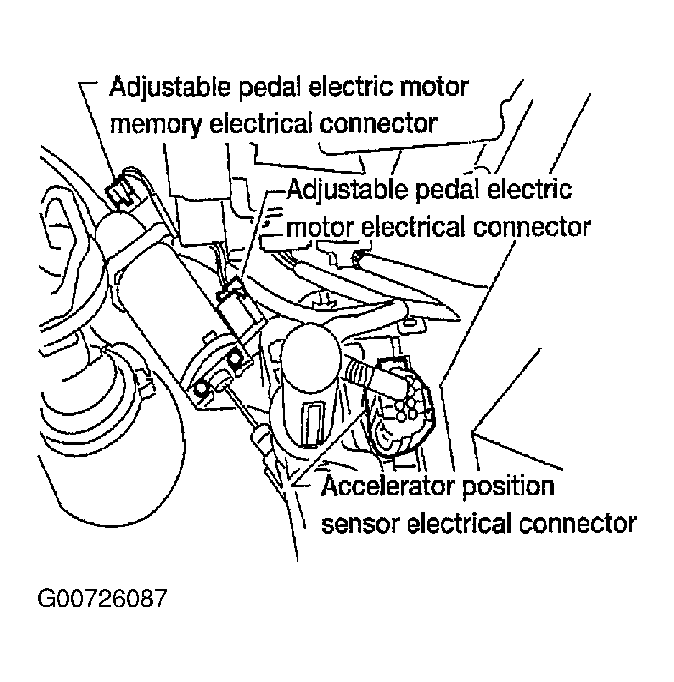

- Disconnect the adjustable pedal electric motor electrical connector.
- Disconnect the adjustable pedal electric motor memory electrical connector, if equipped.
- Disconnect the accelerator position sensor electrical connector.
- Remove the two upper and one lower accelerator pedal nuts.
- Remove the adjustable accelerator pedal assembly.
