WARNING: When replacing fuel line parts, be sure to observe the following.

Put a "CAUTION: FLAMMABLE" sign in the workshop.
Be sure to work in a well ventilated area and furnish workshop with a CO₂ fire extinguisher.
Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in safe area.
- Release fuel pressure from the fuel lines. See FUEL PRESSURE RELEASE in BASIC DIAGNOSTIC PROCEDURES - TITAN ARTICLE in ENGINE PERFORMANCE.
- Disconnect the battery negative terminal.
Always replace O-rings and clamps with new ones.
Do not kink or twist hoses when they are being installed.
Do not tighten hose clamps excessively to avoid damaging hoses.
Tighten high-pressure rubber hose clamp so that clamp end is 3 mm (0.12 in) from hose end.

Tightening torque specifications are the same for all rubber hose clamps.

Ensure that screw does not contact adjacent parts.

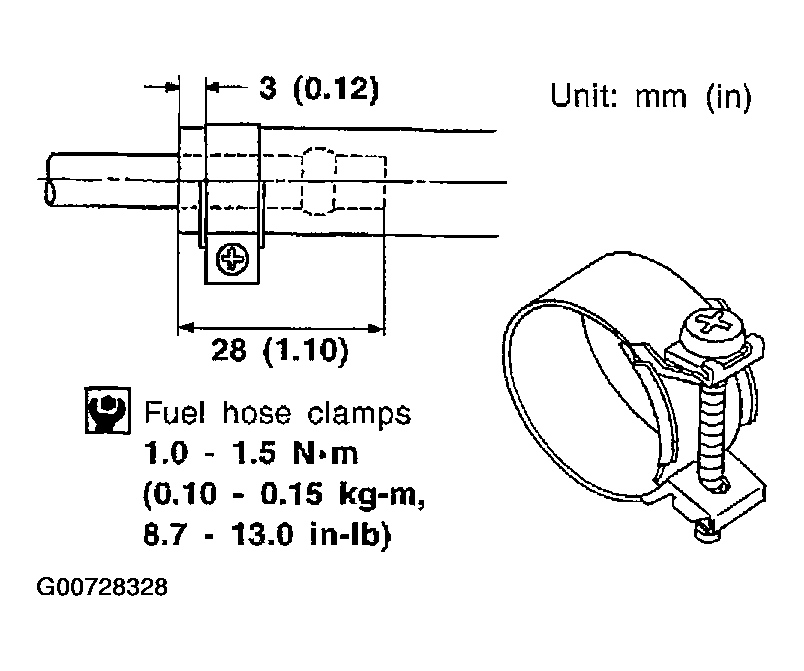

Fig 1: Identifying Proper Hose Clamp Placement And Tightening
Courtesy of NISSAN MOTOR CO., U.S.A.
After connecting the fuel tube quick connectors, make sure the quick connectors are secure. Ensure that the connector and resin tube do not contact any adjacent parts.
After installing tubes, make sure there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel leaks at connections.
- Start the engine and rev it up and check for fuel leaks at connections.
Use only a Genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
For servicing Evaporative Emission System, see EVAPORATIVE EMISSION SYSTEM in SYSTEM & COMPONENT TESTING - TITAN article in ENGINE PERFORMANCE.
For servicing On Board Refueling Vapor Recovery (ORVR) system, see ON BOARD REFUELING VAPOR RECOVERY (ORVR) in SYSTEM & COMPONENT TESTING - TITAN article in ENGINE PERFORMANCE.
