2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Torque Specifications
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||
|---|---|---|---|

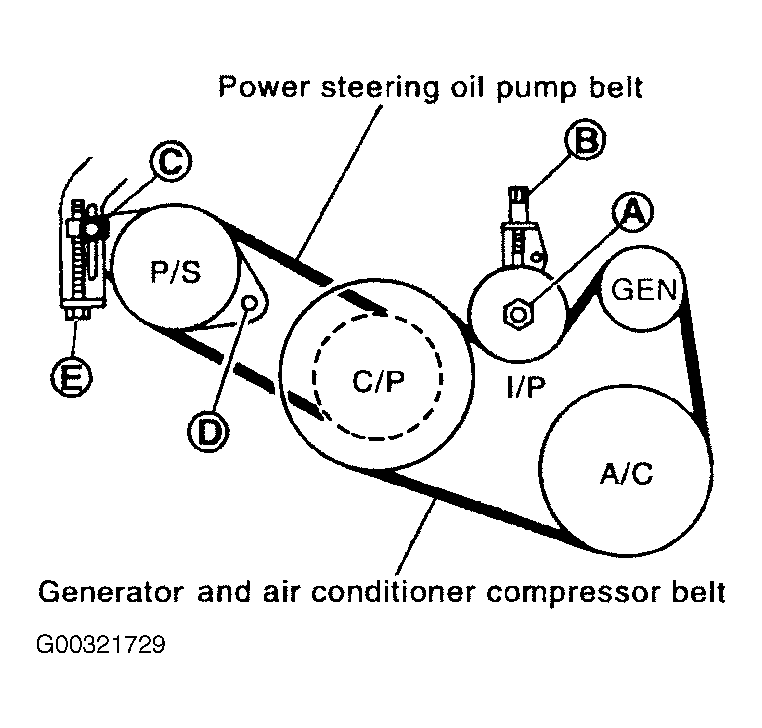

| Drive Belt Adjusting Bolt "C" (1) | 12-14 (16-19) | ||
| Drive Belt Idler Pulley Lock Nut "A" (1) | 19-24 (26-32) | ||
| Generator Lower Mounting Nut | 55-69 (74-94) | ||
| Generator Upper Mounting Bolt | 18-23 (24-31) | ||
| Generator Pulley Nut | 51-60 (68-82) | ||
| Power Steering Oil Pump Mounting Bolt "D" (1) | 27-36 (37-50) | ||
| INCH Lbs. (N.m) | |||
| Drive Belt Adjusting Bolt "B" (1) | 35-62 (4-7) | ||
|
|||
