2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Model Identification

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
BRAKE MODEL IDENTIFICATION

Year & Application Brake Model
2003 Coupe
Front Standard (CLZ25VD) (1)
Rear Standard (AD14VE) (2)
2004 Coupe
Front Brembo(R) (OPB27VA) (3)
Rear Brembo(R) (OPB13VB) (4)
2003 Sedan
Front Standard (CLZ25VD) (1)
Rear Standard (AD14VE) (2)
2004 Sedan
Front Standard (CLZ25VD) (1)
Rear Standard (AD14VE) (2)
(1) See Fig 1 .
(2) See Fig 2 .
(3) See Fig 3 .
(4) See Fig 4 .

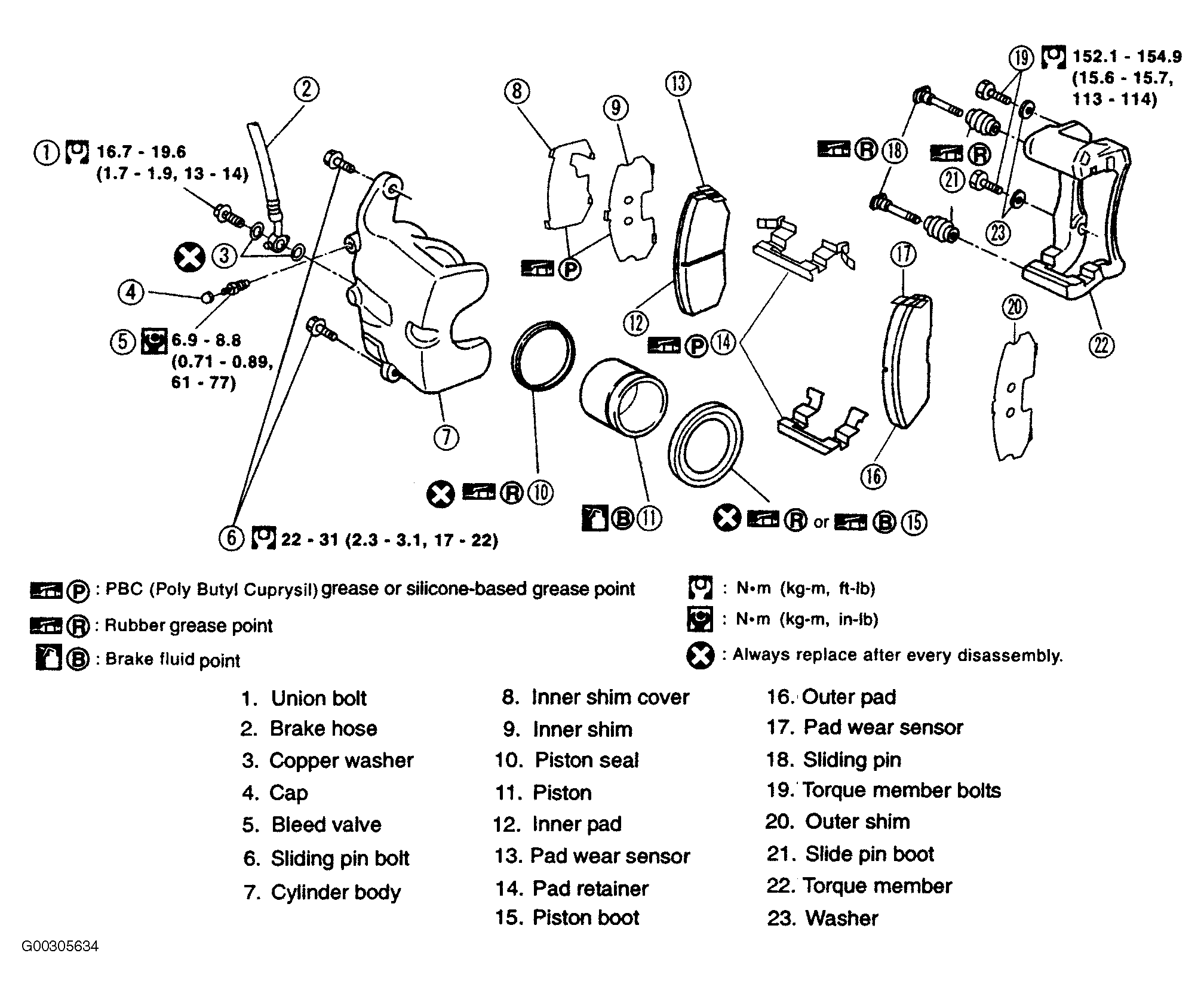

Fig 1: Exploded View Of Front Disc Brake Caliper (CLZ25VD Type)
G00305634Courtesy of NISSAN MOTOR CO., U.S.A.
