2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
CONSULT-II Function (ENGINE): Function
WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

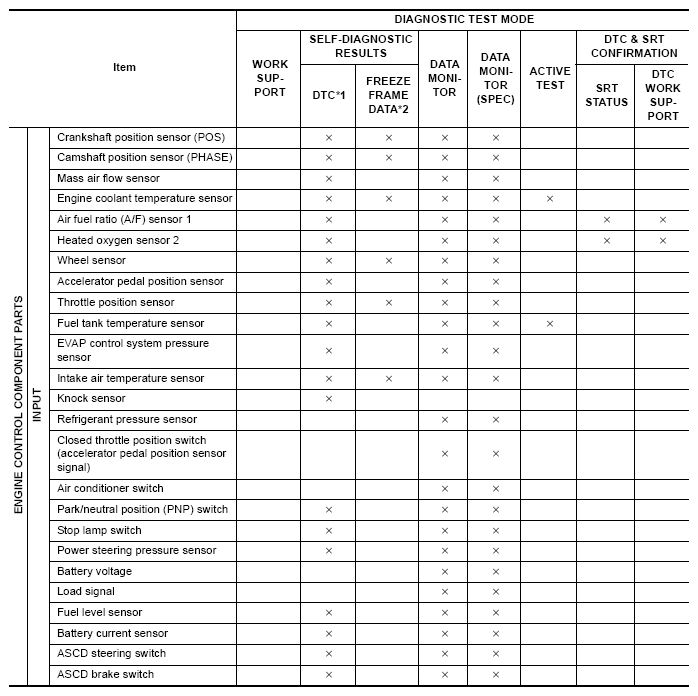

CONSULT-II FUNCTION CHART
| Diagnostic test mode | Function | ||
|---|---|---|---|
| Work support | This mode enables a technician to adjust some devices faster and more accurately by following the indications on the CONSULT-II unit. | ||
| Self-diagnostic results | Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data can be read and erased quickly.(1) | ||
| Data monitor | Input/Output data in the ECM can be read. | ||
| Data monitor (SPEC) | Input/Output of the specification for Basic fuel schedule, AFM, A/F feedback control value and the other data monitor items can be read. | ||
| CAN diagnostic support monitor | The results of transmit/receive diagnosis of CAN communication can be read. | ||
| Active test | Diagnostic Test Mode in which CONSULT-II drives some actuators apart from the ECMs and also shifts some parameters in a specified range. | ||
| Function test | This mode is used to inform customers when their vehicle condition requires periodic maintenance. | ||
| DTC & SRT confirmation | The status of system monitoring tests and the self-diagnosis status/result can be confirmed. | ||
| ECM part number | ECM part number can be read. | ||
|
|||
- Diagnostic trouble codes
- 1st trip diagnostic trouble codes
- Freeze frame data
- 1st trip freeze frame data
- System readiness test (SRT) codes
- Test values
