Diagnostic Procedure
- CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
- Turn ignition switch ON.

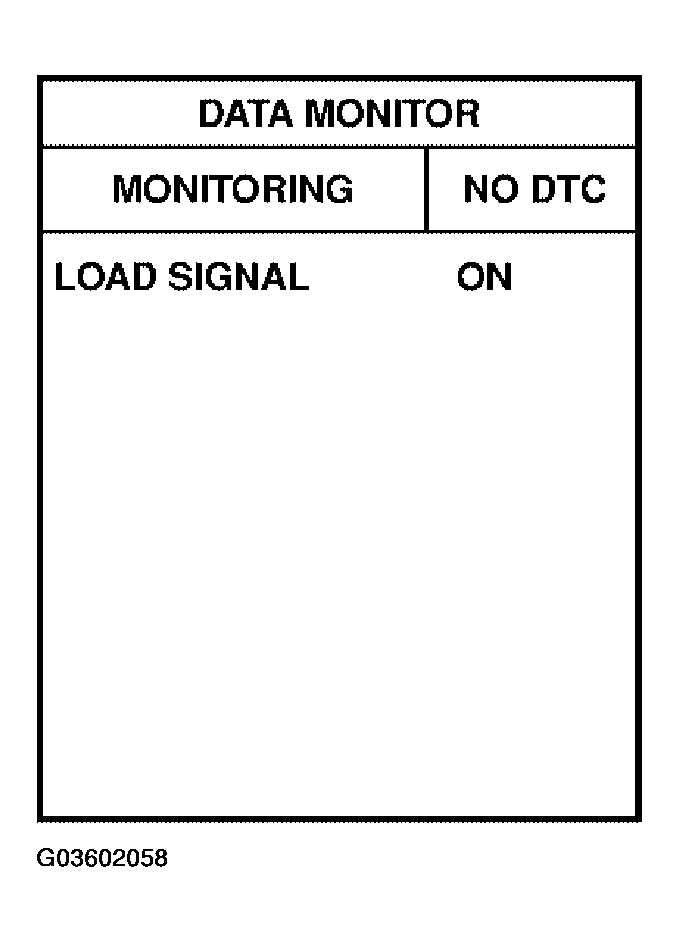

- Connect CONSULT-II and select "DATA MONITOR" mode.
- Select "LOAD SIGNAL" and check indication under the following conditions.CONDITION INDICATION
Condition Indication Lighting switch: ON at 2nd position ON Lighting switch: OFF OFF
OK or NG
- OK: INSPECTION END
- NG: GO TO 2.
- CHECK HEADLAMP SYSTEM
Refer to "HEADLAMP (FOR USA) ", or "HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM ".
- : INSPECTION END
