2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.

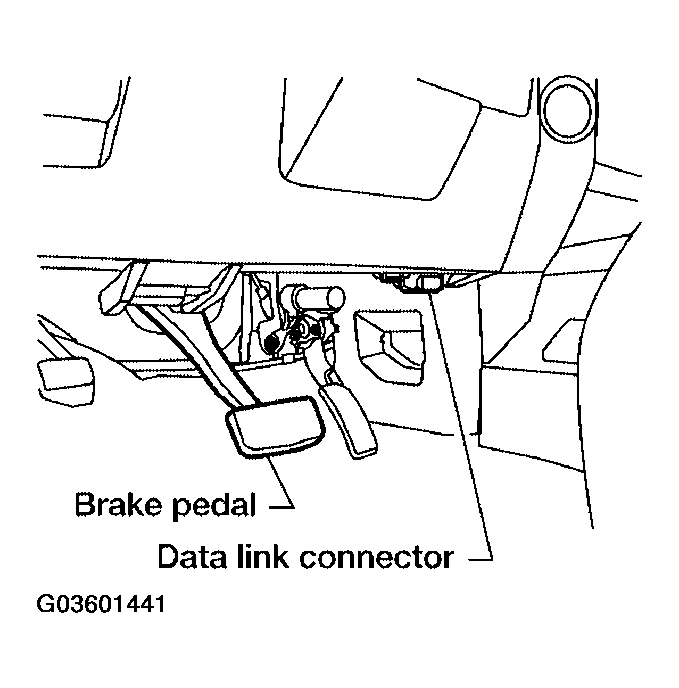

Fig 1: Connecting GST To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this article, sample screens are shown.)

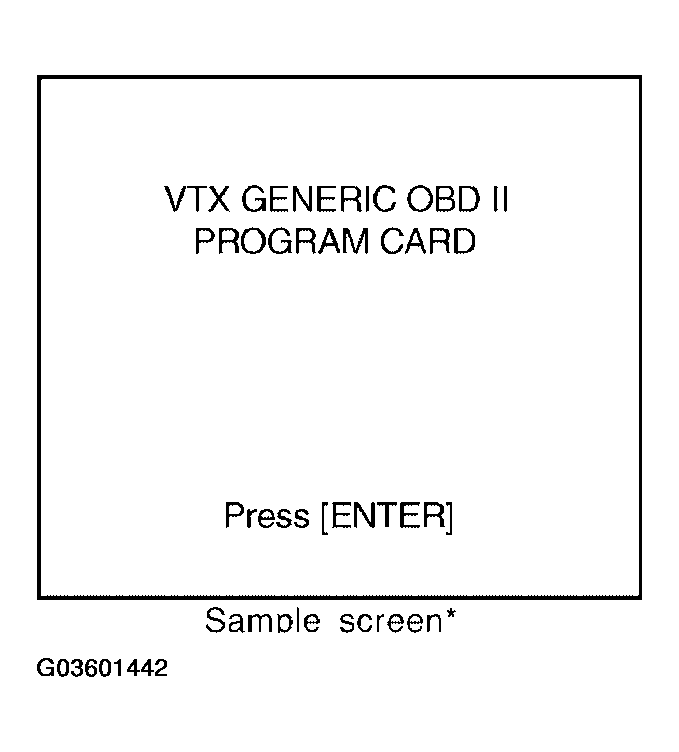

Fig 2: Identifying VTX Generic OBD II Program Card
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker .

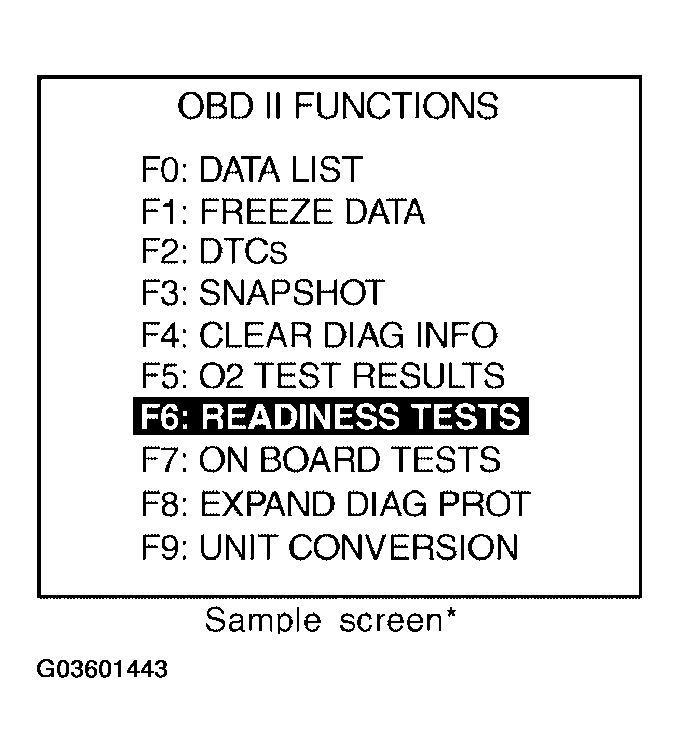

Fig 3: Identifying OBD-II Function Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
