2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
With CONSULT-II
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.

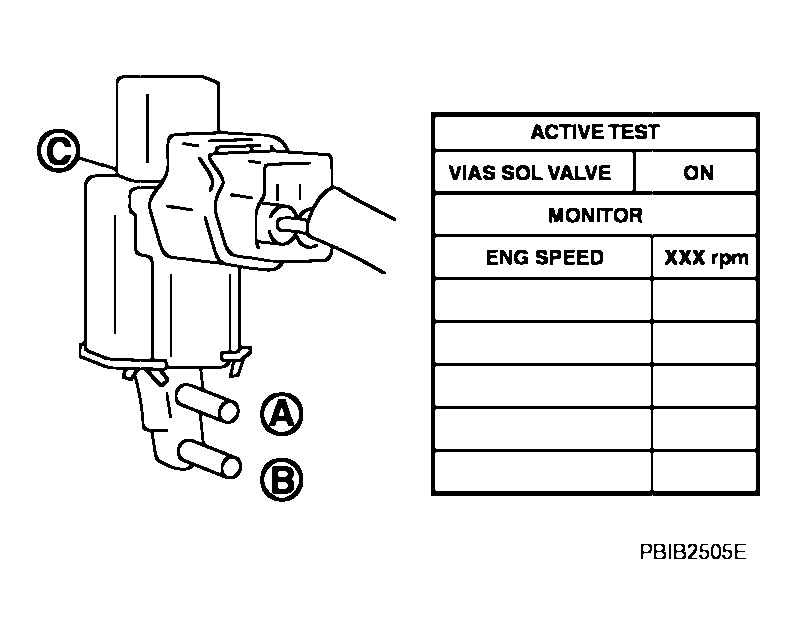

- Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
- Check air passage continuity and operation delay time under the following conditions.
AIR PASSAGE CONTINUITY
| Condition VIAS SOL VALVE | Air passage continuity between (A) and (B) | Air passage continuity between (A) and (C) |
|---|---|---|
| ON | Yes | No |
| OFF | No | Yes |
Operation takes less than 1 second.
