2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Filament Check
WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

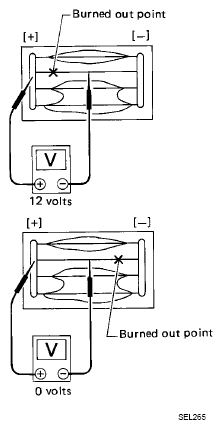

- When measuring voltage, wrap tin foil around the top of the negative probe. Then press the foil against the wire with your finger.
- Attach probe circuit tester (in Volt range) to middle portion of each filament.
- If a filament is burned out, circuit tester registers 0 or battery voltage.
- To locate burned out point, move probe to left and right along filament. Test needle will swing abruptly when probe passes the point.
