Inspection Procedure

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE)
1. Check that the power window manual UP/DOWN function operates normally.
NG : OTHER PROBLEM

OK: Go To Next Step

CHECK LIGHT OF POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DRIVER SIDE SWITCH)

Turn the ignition switch ON.
Operate the driver side switch on the master switch.

Check the blinking pattern of the AUTO light as shown in the illustration.

Result

RESULT REFERENCE

Result	Proceed to
Pattern (1) or (3) is displayed	A
Pattern (2) is displayed	B
Normal pattern is displayed	C

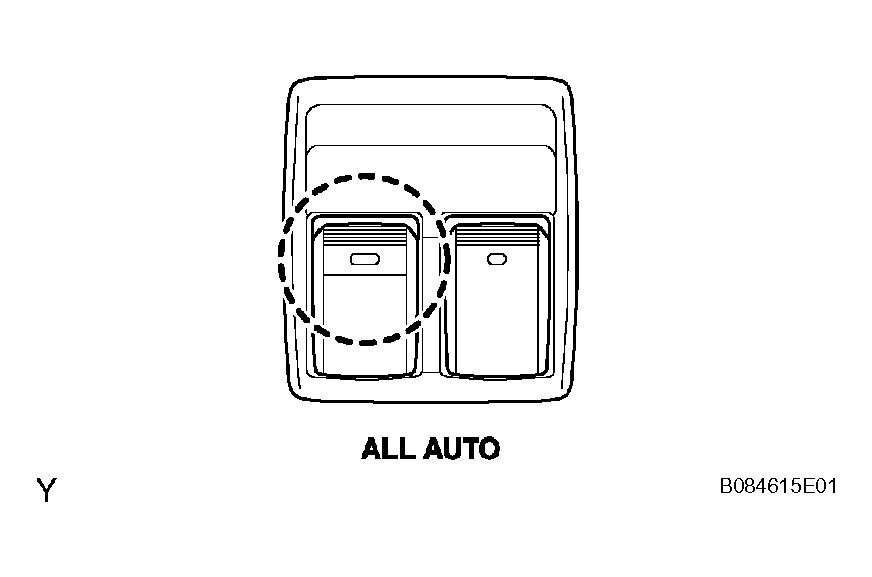

Fig 1: Identifying Operate Driver Side Switch On Master Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
