2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Combination Meter: Installation
WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

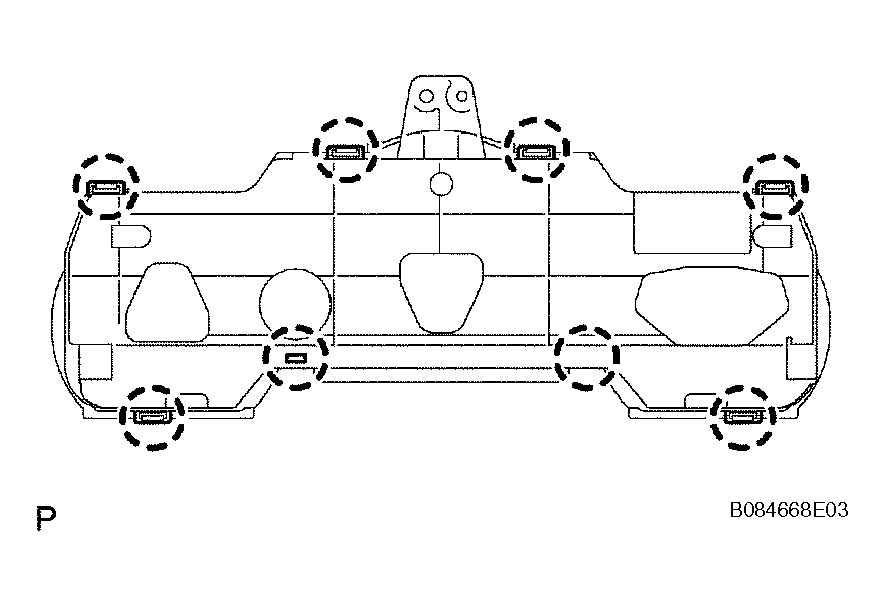

- INSTALL COMBINATION METER GLASS
- Attach the 8 claws to install the combination meter glass.

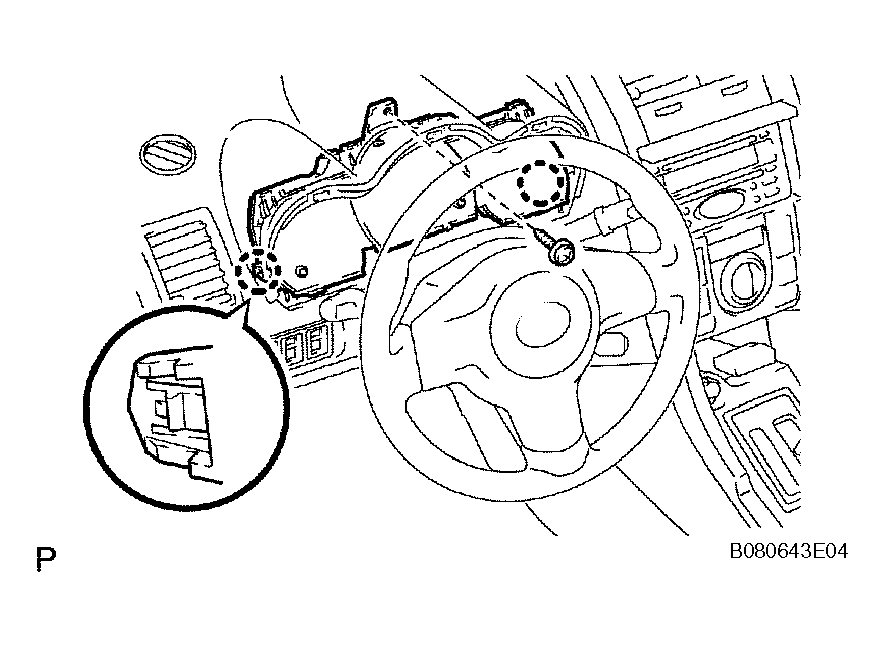

- INSTALL COMBINATION METER ASSEMBLY
- Connect the connector and install the combination meter.
- Attach the 2 claws to install the screw.

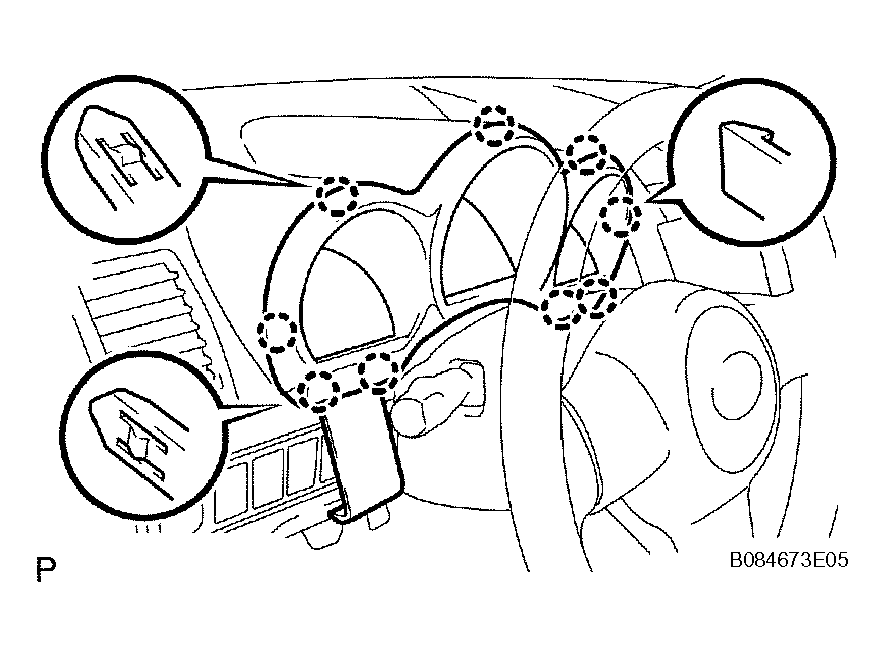

- INSTALL METER HOOD SUB-ASSEMBLY
- Attach the 9 claws to install the meter hood.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION ).
