Fuel Lid Lock Control: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL FILLER OPENING LID LOCK RETAINER
    1. Install the lock retainer as shown in the illustration.

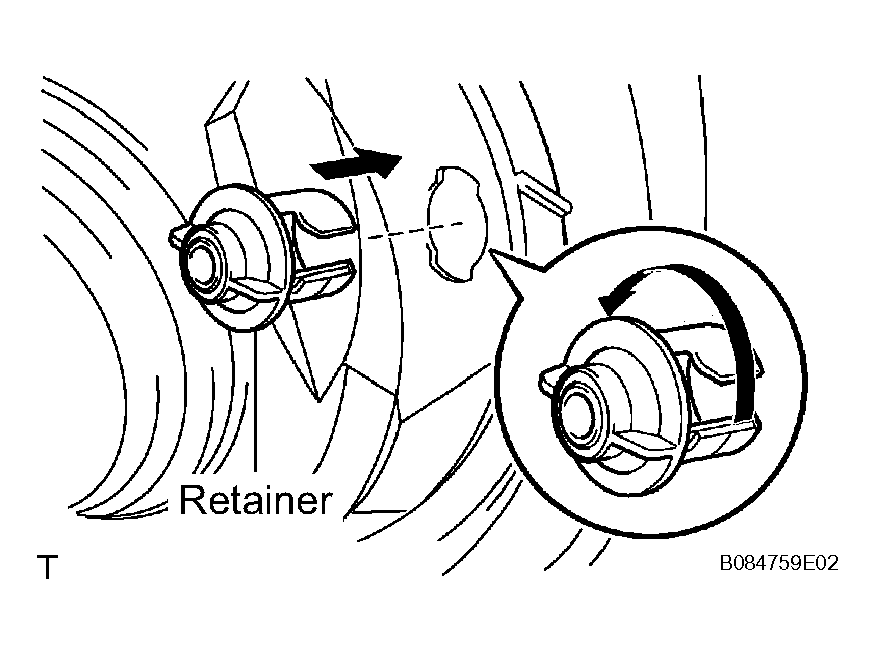

    Fig 1: Installing Fuel Filler Opening Lid Lock Retainer
    G04224833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. Install the cable and turn it clockwise, as shown in the illustration.

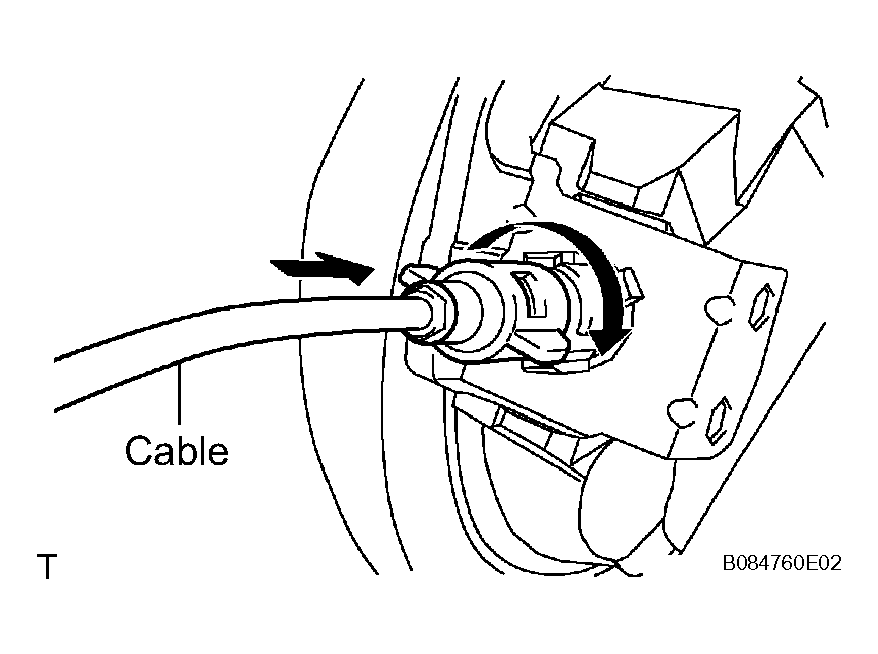

      Fig 2: Installing Fuel Lid Lock Control Cable
      G04224834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cable to the clamps as shown in the illustration.

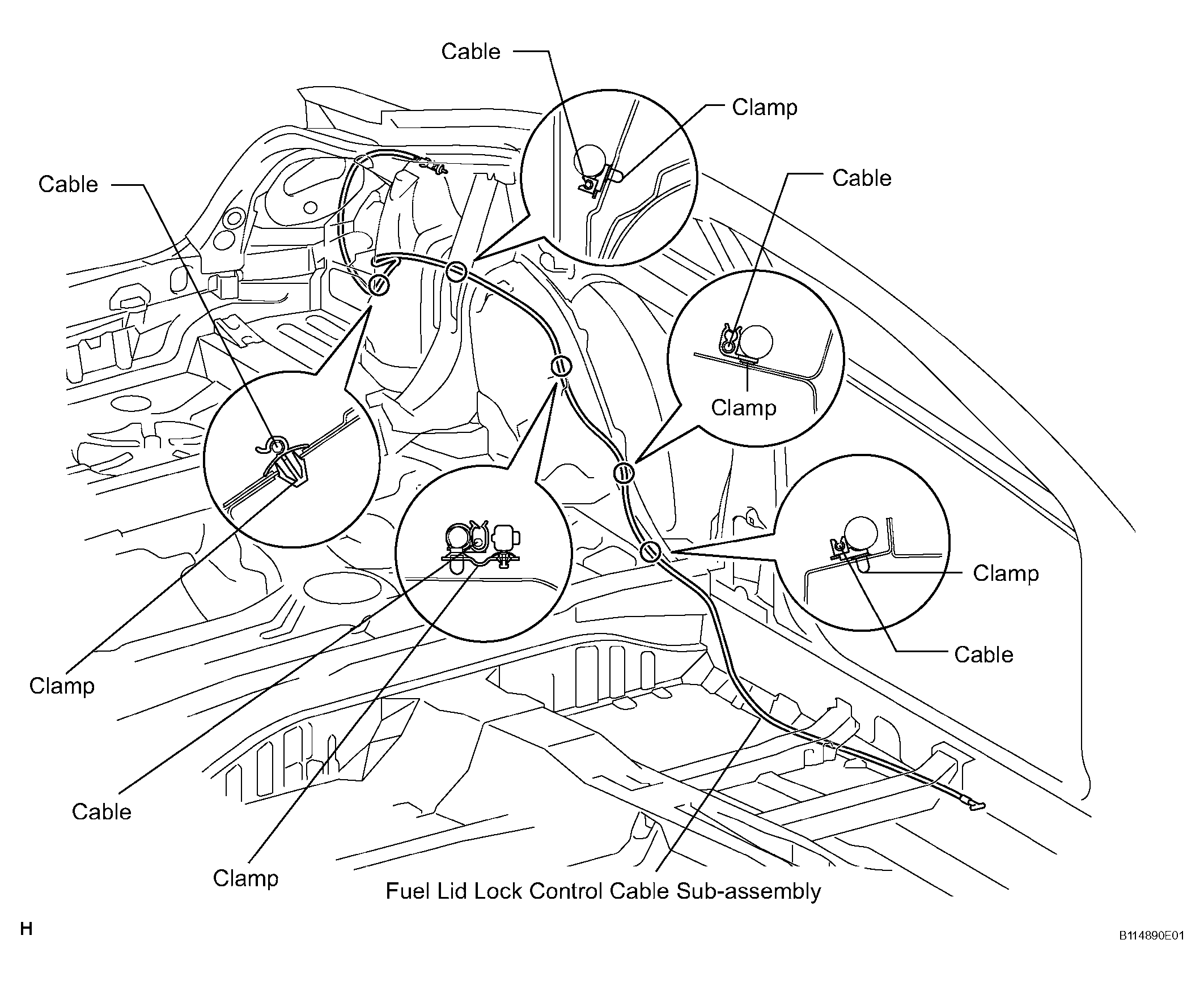

      Fig 3: Installing Fuel Lid Lock Control Cable To Clamps
      G04224835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the floor mat.
  3. INSTALL NO. 1 SIDE TRIM ASSEMBLY LH (See  INSTALLATION   )
  4. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION   )
  5. INSTALL REAR SEATBACK ASSEMBLY LH (See  INSTALLATION  )
  6. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  7. INSTALL REAR NO. 1 FLOOR BOARD (See  INSTALLATION   )
  8. INSTALL NO. 1 DECK BOARD (See  INSTALLATION   )
  9. INSTALL DECK BOARD SUB-ASSEMBLY
  10. INSTALL TONNEAU COVER ASSEMBLY
  11. INSTALL FRONT SEAT ASSEMBLY LH
    1. Install the front seat (see INSTALLATION ).
  12. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
    1. Install the cable.
    2. Install the cover in the direction indicated by arrow mark.
    3. Install the screw.

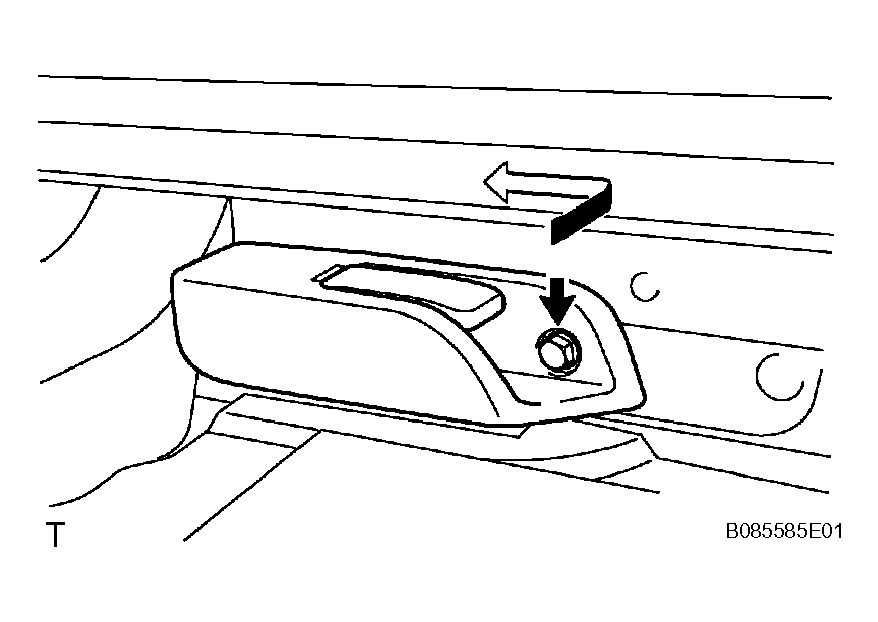

      Fig 4: Installing Fuel Lid Lock Open Lever Cover Bolt
      G04224836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
