2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Front Floor Footrest: Replacement
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT FLOOR FOOTREST
- Holding the floor mat, disengage clips from the upper with a screwdriver to remove the front floor footrest.
HINT:
Tape the screwdriver tip before use.

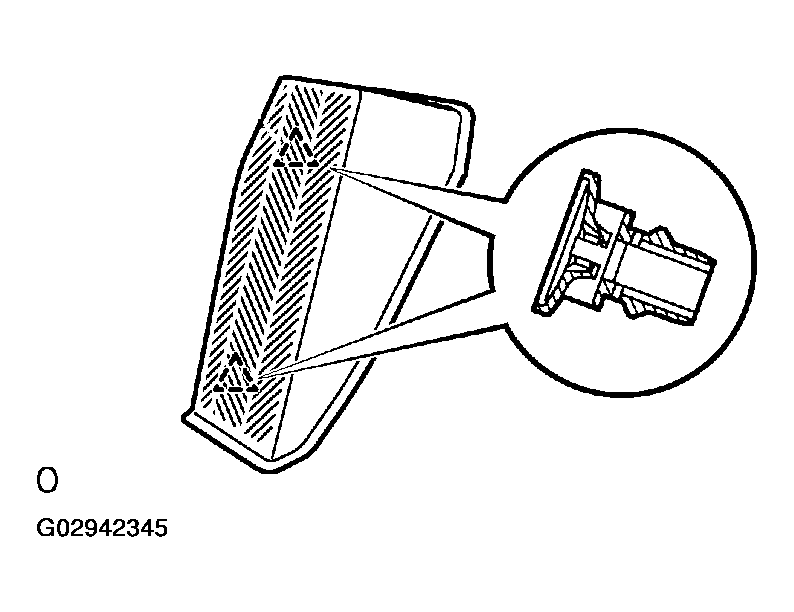

NOTE: Warm the inside of the vehicle well before removal. - Disengage the footrest clips, and then remove the 2 clips from the front floor footrest.
- Holding the floor mat, disengage clips from the upper with a screwdriver to remove the front floor footrest.
- INSTALL FRONT FLOOR FOOTREST
- Install the footrest clips by engaging the claws with the front floor footrest.
- Before installation, check that the part to be engaged with the clips of front floor footrest is not damaged.
NOTE: If it is damaged, replace it with a new one.
