Door Window Frame Moulding: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  • Installation is in the reverse order of removal. But the installation is indicated only when it has a point.
  • In the RH side, work in the same procedure as in the LH side.
  1. REMOVE FRONT DOOR WEATHERSTRIP UPPER
  2. REMOVE REAR DOOR WEATHERSTRIP NO.2 LH
  3. REMOVE FRONT DOOR WINDOW FRAME MOULDING UPPER LH
    1. Using a drill of less than phis 4 mm (0.16 in.).
    2. Gently and vertically place the drill tip onto the rivet, and cut the rivet flanges.

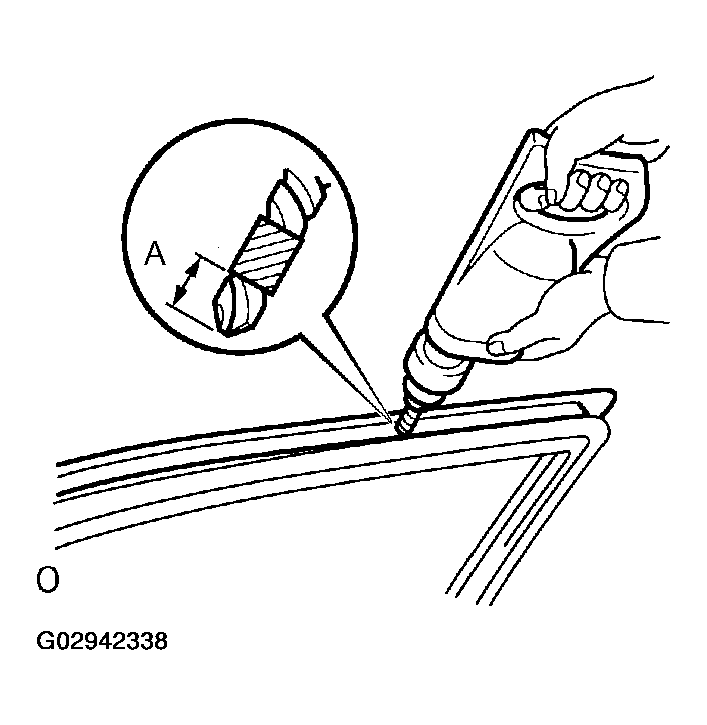

      Fig 1: Cutting Rivet Flanges For Front Door Window Frame Moulding Upper LH
      G02942338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. A: 5 mm (0.20 in.)
      NOTE:
      • Prizing the hole with a drill can lead to damage to the rivet hole or the drill itself.
      • Be careful when undertaking this task as the cut rivet is hot.
    3. Even if flange is taken off, continue drilling and push cut remaining fragment with the drill.
    4. Remove front door window frame moulding upper from the door frame.

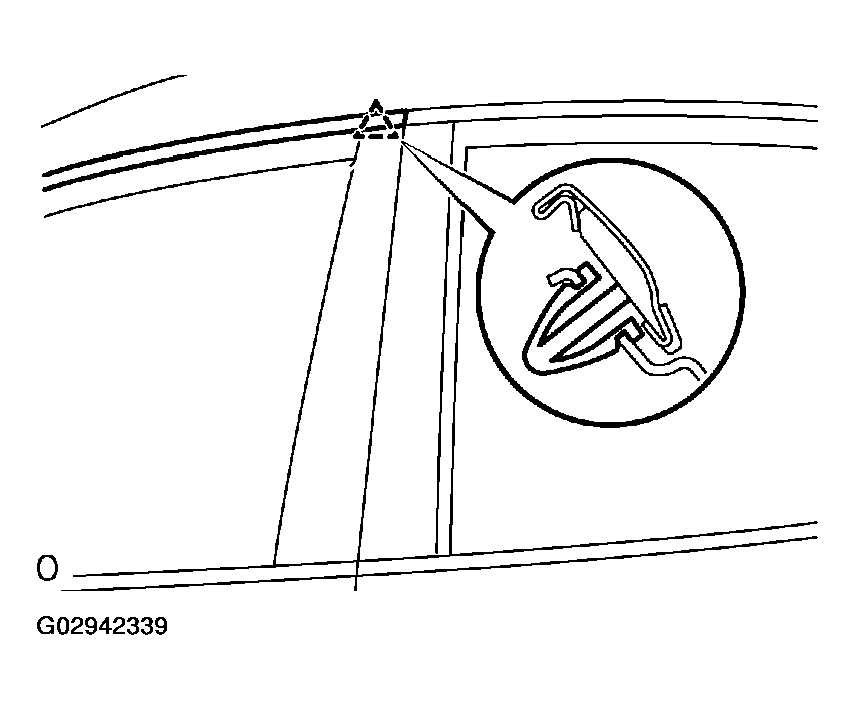

      Fig 2: Removing Front Door Window Frame Moulding Upper LH
      G02942339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DOOR WINDOW FRAME MOULDING SUB-ASSY LH
    1. Using a drill of less than phis 4 mm (0.16 in.).
    2. Gently and vertically place the drill tip onto the rivet, and cut the rivet flanges.

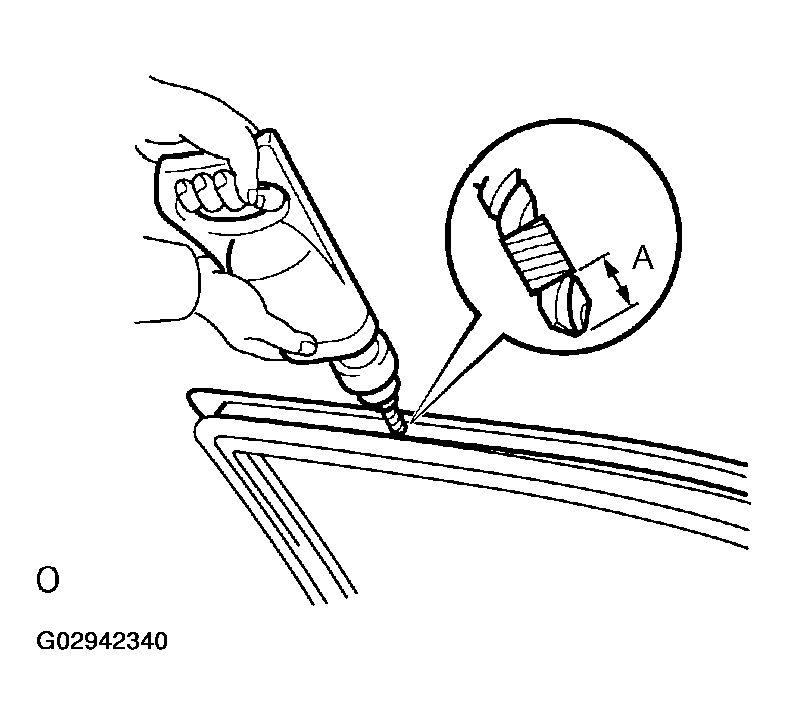

      Fig 3: Cutting Rivet Flanges For Rear Door Window Frame Moulding Sub-Assy LH
      G02942340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. A: 5 mm (0.20 in.)
      NOTE:
      • Prizing the hole with a drill can lead to damage to the rivet hole or the drill itself.
      • Be careful when undertaking this task as the cut rivet is hot.
    3. Even if flange is taken off, continue drilling and push cut remaining fragment with the drill.
    4. Remove the rear door window frame moulding from the door frame.

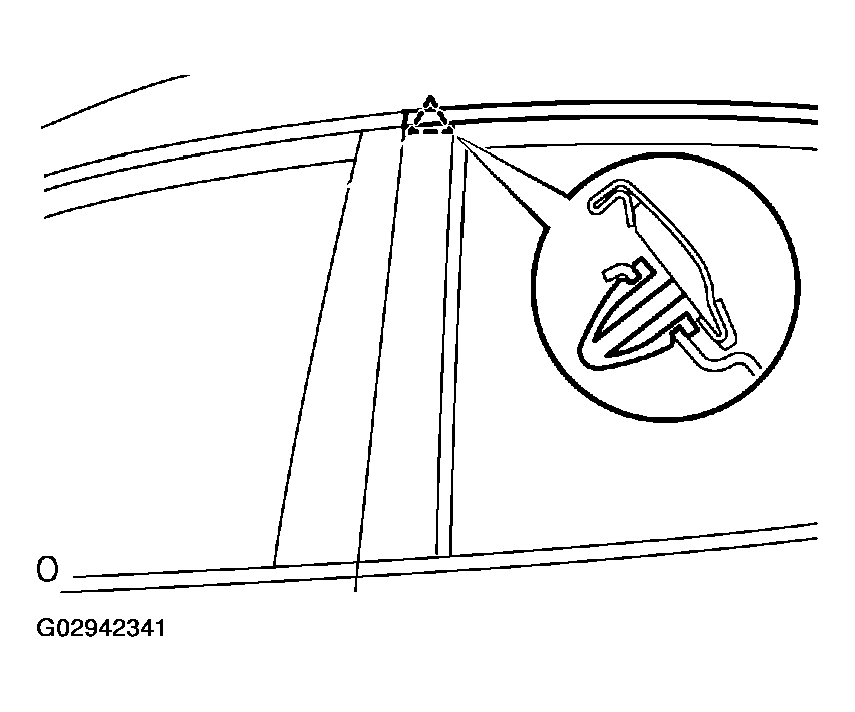

      Fig 4: Removing Rear Door Window Frame Moulding Sub-Assy LH
      G02942341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT DOOR WINDOW FRAME MOULDING UPPER LH
    1. Engage the front door window frame moulding upper with door frame.
    2. Using an air riveter or hand riveter with nose piece, strike rivets into the door frame.

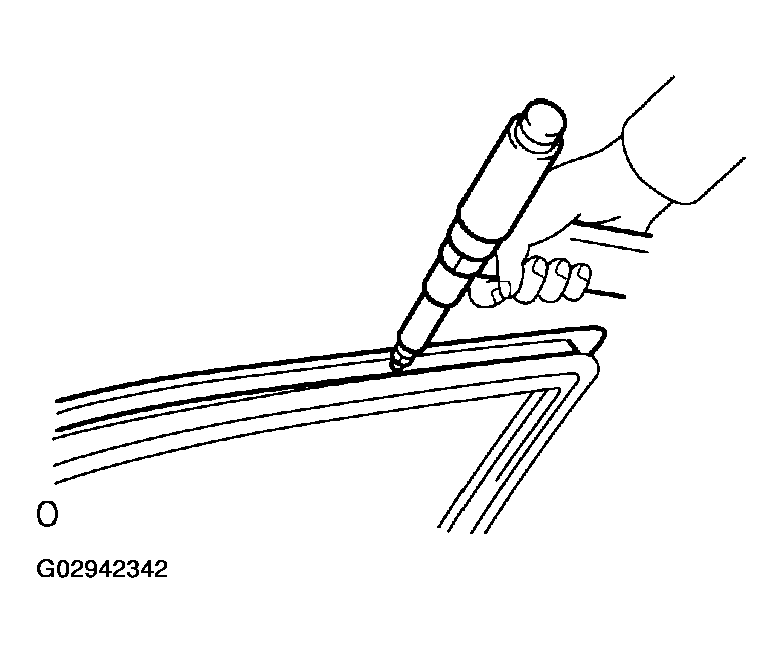

    Fig 5: Installing Front Door Window Frame Moulding Upper LH
    G02942342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
