2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Terminals and Reference Value for Rear View Camera Control Unit
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAMERA CONTROL UNIT - TERMINALS AND REFERENCE VALUE TABLE
| Terminal No. | Wire color | Item | Condition | Reference value (V) (Approx.) | |
|---|---|---|---|---|---|
| Ignition switch | Operation | ||||
| 1 | Y | Battery power | OFF | - | Battery voltage |
| 2 | V | ACC power | ACC | - | Battery voltage |
| 3 | B | Ground | OFF | - | 0 |
| 4 | G/W | Reverse signal input | ON | A/T selector lever R position | Battery voltage |
| A/T selector lever in other than R position | 0 | ||||
| 5 | BR | AV Control | ON | A/T selector lever R position | 0 |
| - | 0 | ||||
| 6 | G/W | DDL | - | - | - |
| 8 | Y | Camera power output | ON | A/T selector lever R position | 6 |
| 9 | - | Camera image input (-) | ON | - | 0 |

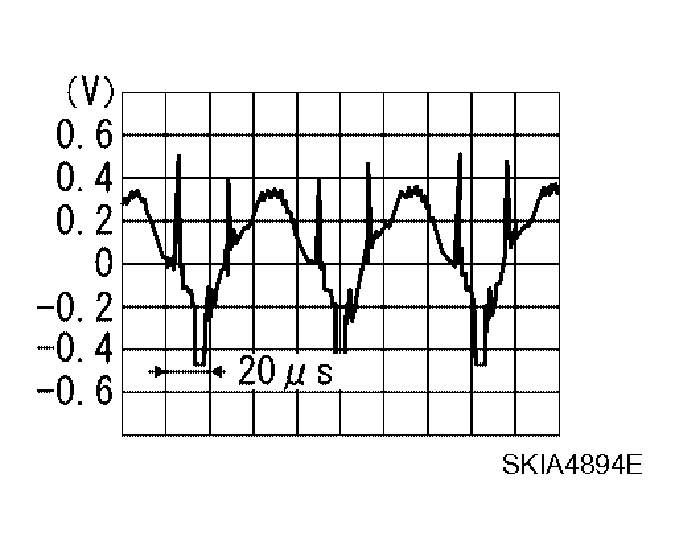

| 10 | G | Camera image input (+) | ON | A/T selector lever R position | |
| 11 | - | Shield ground | - | - | - |

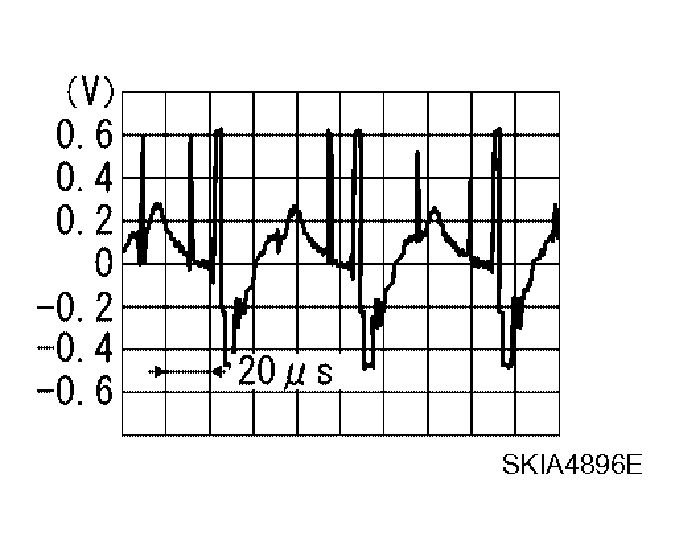

| 12 | W | Composite image output | ON | A/T selector lever R position | |
