CAN Communication Unit: Notes
Refer to the following table to determine CAN system type.
| Axle | 2WD | ||||
| Engine | VQ35DE | ||||
| Transmission | 4 A/T | 5 A/T | |||
| Brake control | TCS | TCS | VDC | ||
| Monochrome display | X | X | |||
| Color display | X | X | X | ||
| Automatic drive positioner | X | ||||
| CAN system type | 1 | 2 | 3 | 4 | 5 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 3) | CAN SYSTEM (TYPE 4) | CAN SYSTEM (TYPE 5) |
| X: Applicable | |||||

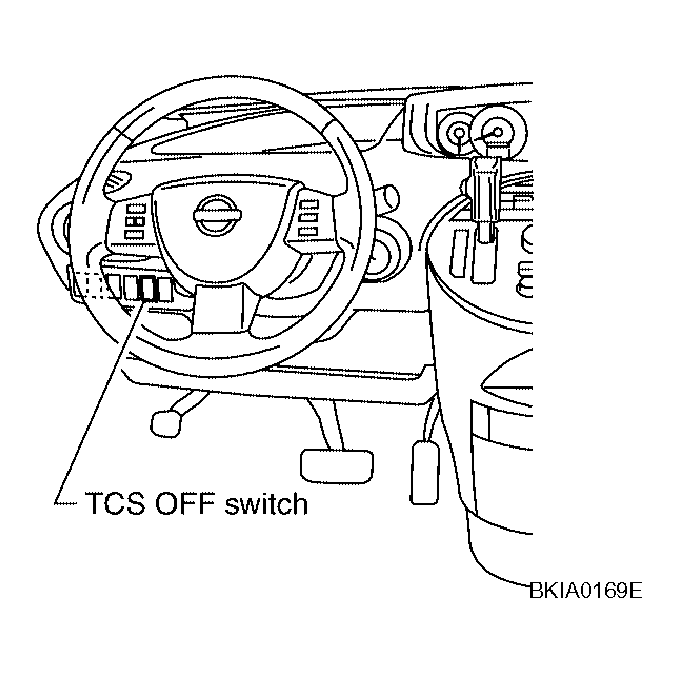

- Models with TCS

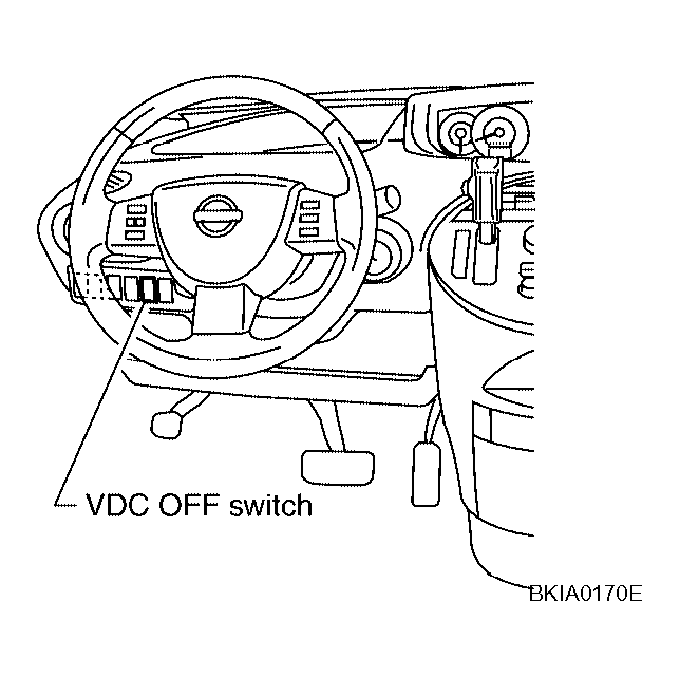

- Models with VDC

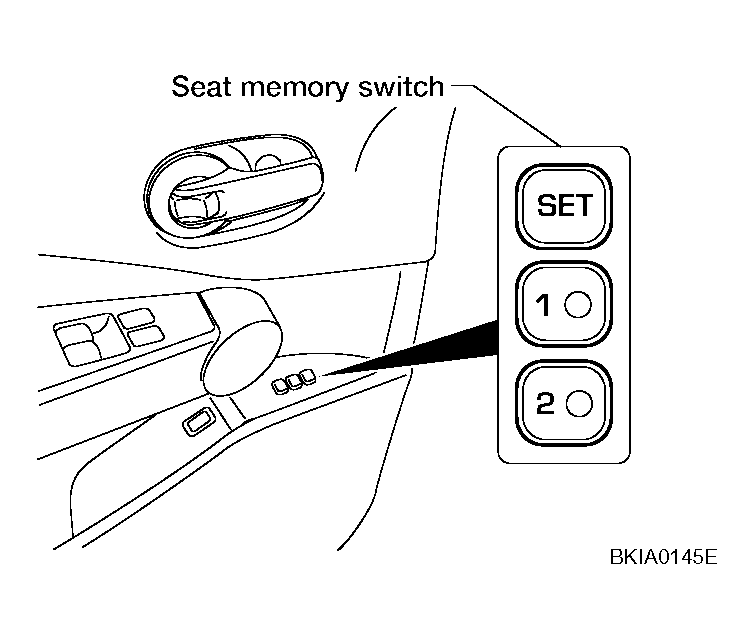

- Models with automatic drive positioner
