2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Section 175 (Electrical Component Locator): Miscellaneous

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
MISCELLANEOUS LOCATION

Component Component Location
Antenna Amplifier Behind right center of dash. See Figure.
Circuit Breaker Behind left side of dash. See Figure.
Condenser (3) Behind upper right side of dash, taped to harness. See Figure.
Data Link Connector Below left side of dash. See Figure.
Diode Behind left rear quarterpanel, taped to harness.
Front Electronic Controlled Engine Mount At lower front center of engine compartment.
Horn (High) Below right headlight. See Figure.
Horn (Low) Below left headlight. See Figure.
Joint Connector No. 1 Behind upper right side of dash. See Figure.
Joint Connector No. 2 Behind upper right side of dash. See Figure.
Joint Connector No. 3 Behind upper right side of dash. See Figure.
NATS Antenna Amplifier Behind center of dash. See Figure.
Rear Electronic Controlled Engine Mount (AWD) At lower rear center of engine compartment.

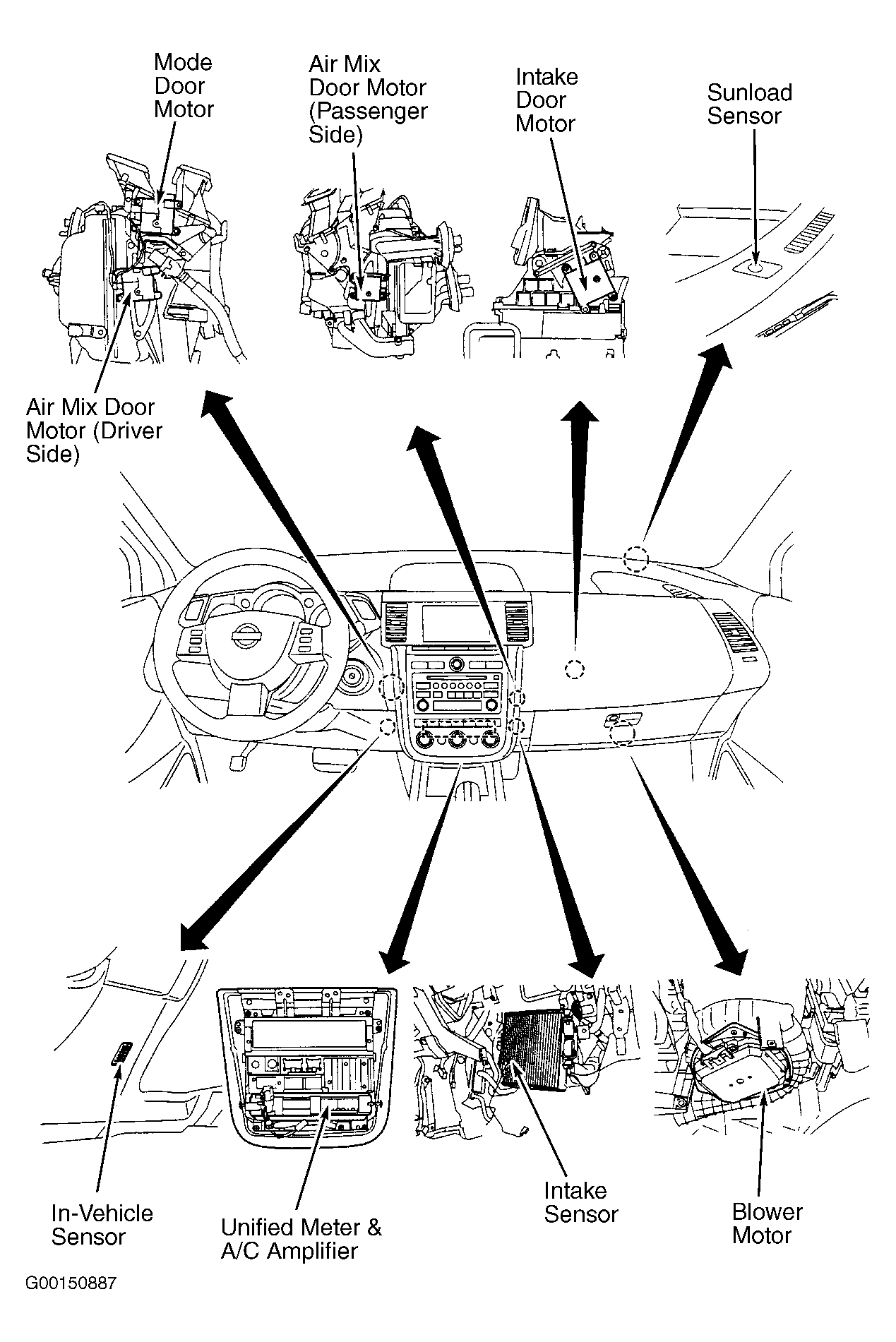

Unified Meter & A/C Amplifier Behind lower center of dash. See Figure.
