WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfob must be re-registered. To erase all ID codes in memory, register one ID code (keyfob) 4 times. After all ID codes are erased, the ID codes of all remaining and/or new keyfob must be re-registered. When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If 4 ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less than 4 ID codes are stored in memory, when an additional ID code is registered, the new ID code is added and no ID codes are erased. If you need to activate more than 2 additional new keyfobs, repeat the procedure for each new keyfob.

For keyfob set up without CONSULT-II, see Fig 1 .

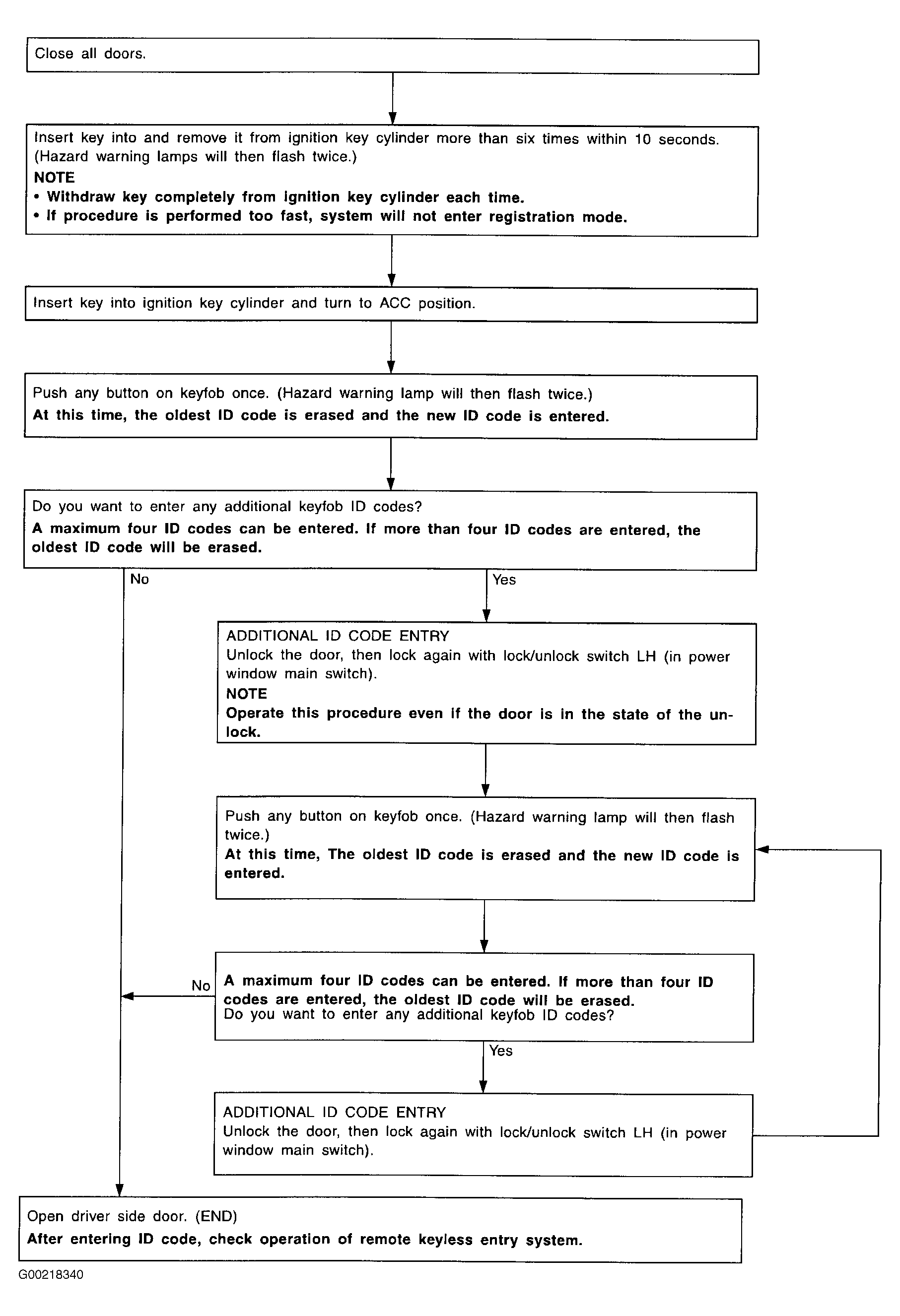

Fig 1: Identifying Keyfob Set Up Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
