2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Component Locations
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

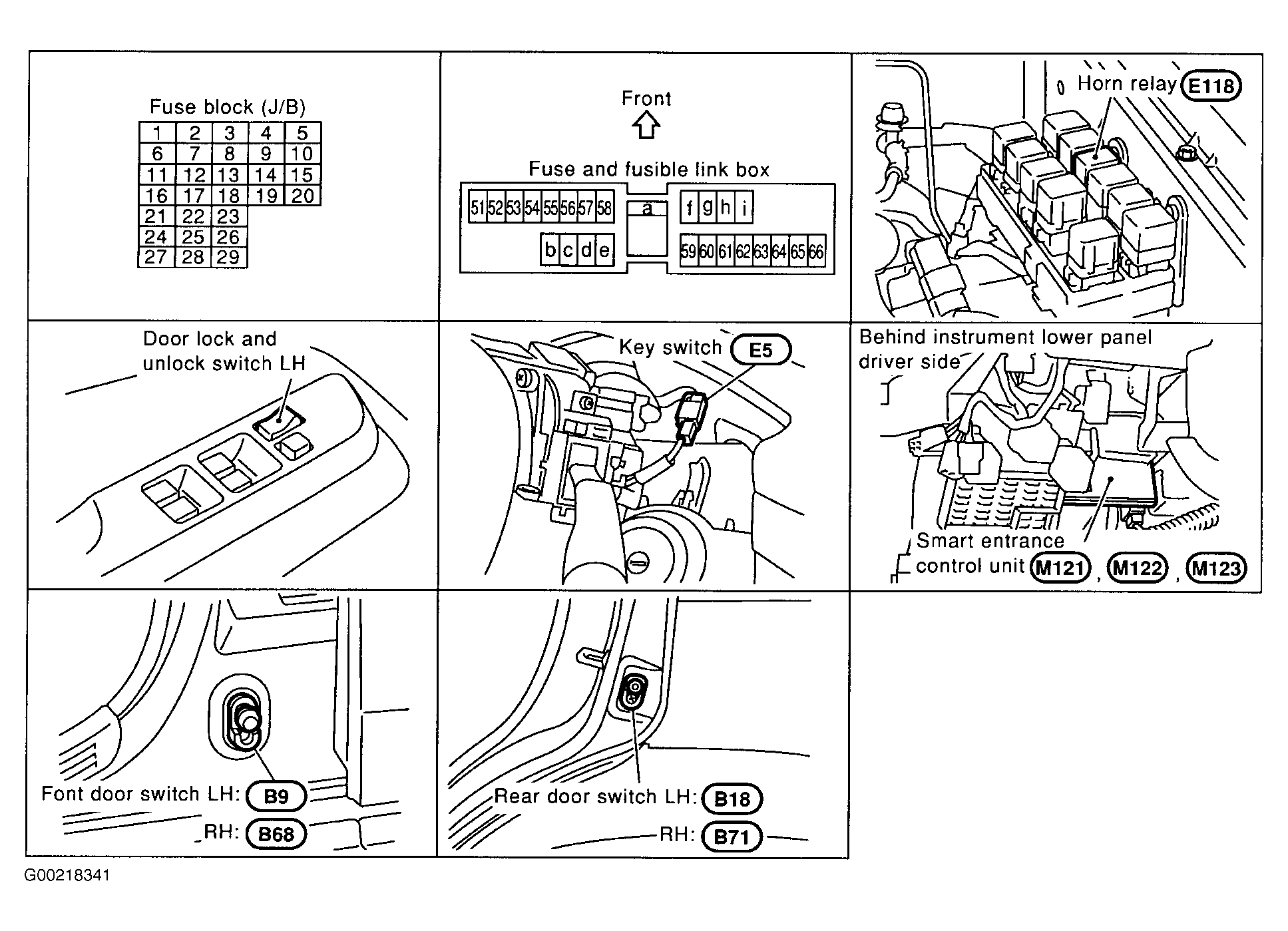

COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Door Lock/Unlock Switch | On Left & Right Front Door Trim Panels | ||
| Door Switch | On Bottom Door Posts | ||
| Fuse Block (J/B) | Behind Left Side Of Dash | ||
| Fusible Link & Fuse Box | Under Hood, In Front Of Right Strut Pillar | ||
| Key Switch | On Steering Column, Under Steering Column Covers | ||
| Smart Entrance Control Unit | Behind Center Console, Left Of Steering Column | ||
| Horn Relay | In Relay Box No. 1, Behind Left Strut Pillar | ||
|
|||
