Terminals and Reference Values for Automatic Drive Positioner Control Unit
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
TERMINALS AND REFERENCE VALUES FOR AUTOMATIC DRIVE POSITIONER CONTROL UNIT
| Terminal | Wire Color | Item | Condition | Voltage (V) (Approx.) |
|---|---|---|---|---|
| 2 | L | Changeover switch RH signal | Changeover switch in RH position | 0 |
| Other than above | 5 | |||
| 3 | SB | Door mirror remote control switch UP signal | Door mirror remote control switch in UP position | 0 |
| Other than above | 5 | |||
| 4 | V | Door mirror remote control switch LEFT signal | Door mirror remote control switch in LEFT position | 0 |
| Other than above | 5 | |||
| 5 | R | Mirror sensor (RH vertical) signal | Mirror motor RH is operated UP or DOWN | Changes between 3.4 (close to peak) 0.6 (close to valley) |
| 6 | L | Mirror sensor (LH vertical) signal | Mirror motor LH is operated UP or DOWN | Changes between 3.4 (close to peak) 0.6 (close to valley) |
| 8 | O | Pedal sensor input signal | Pedal position front end | 0.5 |
| Pedal position rear end | 4.5 | |||
| 9 | LG | Seat memory switch 1 signal | Memory switch 1 ON | 0 |
| Memory switch 1 OFF | 5 | |||

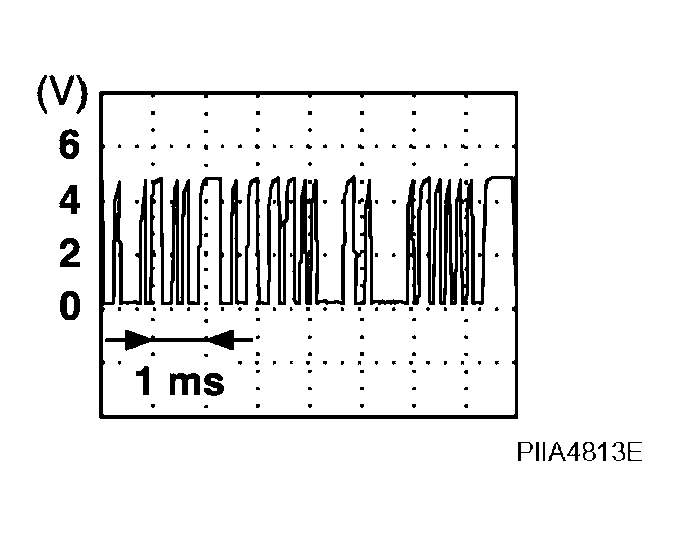

| 10 | SB | UART LINE (TX) | Pedal adjusting switch ON (FORWARD or BACKWARD operation) | |
| 12 | W | Seat memory switch indictor 1 signal | Memory switch 1 ON | 0 |
| Memory switch 1 OFF | Battery voltage | |||
| 13 | Y | Seat memory switch indictor 2 signal | Memory switch 2 ON | 0 |
| Memory switch 2 OFF | Battery voltage | |||
| 14 | GR | Mirror motor RH UP signal | Mirror motor RH is operated UP | 1.5 --> Battery voltage |
| Other than above | 0 | |||
| 15 | V | Mirror motor RH LEFT signal | Mirror motor RH is operated LEFT | 1.5 -> Battery voltage |
| Other than above | 0 | |||
| 16 | O | Mirror motor LH DOWN signal | Mirror motor LH is operated DOWN | 1.5 -> Battery voltage |
| Other than above | 0 | |||
| Mirror motor LH RIGHT signal | Mirror motor LH is operated RIGHT | 1.5 -> Battery voltage | ||
| Other than above | 0 | |||
| 18 | Y | Changeover switch LH signal | Changeover switch in LH position | 0 |
| Other than above | 5 | |||
| 19 | BR | Door mirror remote control switch DOWN signal | Door mirror remote control switch in DOWN position | 0 |
| Other than above | 5 | |||
| 20 | GR | Door mirror remote control switch RIGHT signal | Door mirror remote control switch in RIGHT position | 0 |
| Other than above | 5 | |||
| 21 | P | Mirror sensor (RH horizontal) signal | Mirror motor RH is operated LEFT or RIGHT | Changes between 3.4 (close to left edge) 0.6 (close to right edge) |
| 22 | G | Mirror sensor (LH horizontal) signal | Mirror motor LH is operated LEFT or RIGHT | Changes between 3.4 (close to right edge) 0.6 (close to left edge) |
| 24 | GR | Seat memory set switch signal | Set switch ON | 0 |
| Set switch OFF | 5 | |||
| 25 | P | Seat memory switch 2 signal | Memory switch 2 ON | 0 |
| Memory switch 2 OFF | 5 | |||

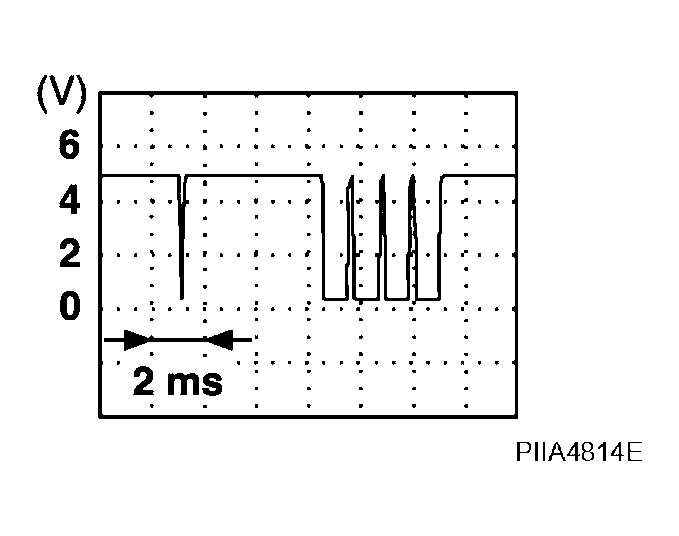

| 26 | G | UART LINE (RX) | Pedal adjusting switch ON (FORWARD or BACKWARD operation) | |
| 30 | G | Mirror motor RH DOWN signal | Mirror motor RH is operated DOWN | 1.5 -> Battery voltage |
| Other than above | 0 | |||
| Mirror motor RH RIGHT signal | Mirror motor RH is operated RIGHT | 1.5 -> Battery voltage | ||
| Other than above | 0 | |||
| 31 | R | Mirror motor LH UP signal | Mirror motor LH is operated UP | 1.5 -> Battery voltage |
| Other than above | 0 | |||
| 32 | B | Mirror motor LH LEFT signal | Mirror motor LH is operated LEFT | 1.5 -> Battery voltage |
| Other than above | 0 | |||
| 33 | W | Sensor power supply | - | 5 |
| 34 | R | Battery power supply | - | Battery voltage |
| 37 | G | Pedal adjust motor FORWARD signal | Pedal adjust motor FORWARD operation (Motor operated) | Battery voltage |
| Other than above | 0 | |||
| 39 | SB | Battery power supply | - | Battery voltage |
| 40 | B | Ground | - | 0 |
| 41 | Y | Sensor ground | - | 0 |
| 45 | BR | Pedal adjust motor BACKWARD signal | Pedal adjust motor BACKWARD operation (Motor operated) | Battery voltage |
| Other than above | 0 | |||
| 48 | B | Ground | - | 0 |
