Description
- BCM reads combination switch (light, wiper) status, and controls various electrical components according to the results.
- BCM reads information of a maximum of 20 switches by combining five output terminals (OUTPUT 1-5) and five input terminals (INPUT 1-5).
Operation description
- BCM activates transistors of output terminals (OUTPUT 1-5) periodically and allows current to flow in turn.
- If any (1 or more) of the switches are turned ON, circuit of output terminals (OUTPUT 1-5) and input terminals (INPUT 1-5) becomes active.
- At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When voltage of input terminals (INPUT 1-5) corresponding to that switch changes, interface in BCM detects voltage change and BCM determines that switch is ON.

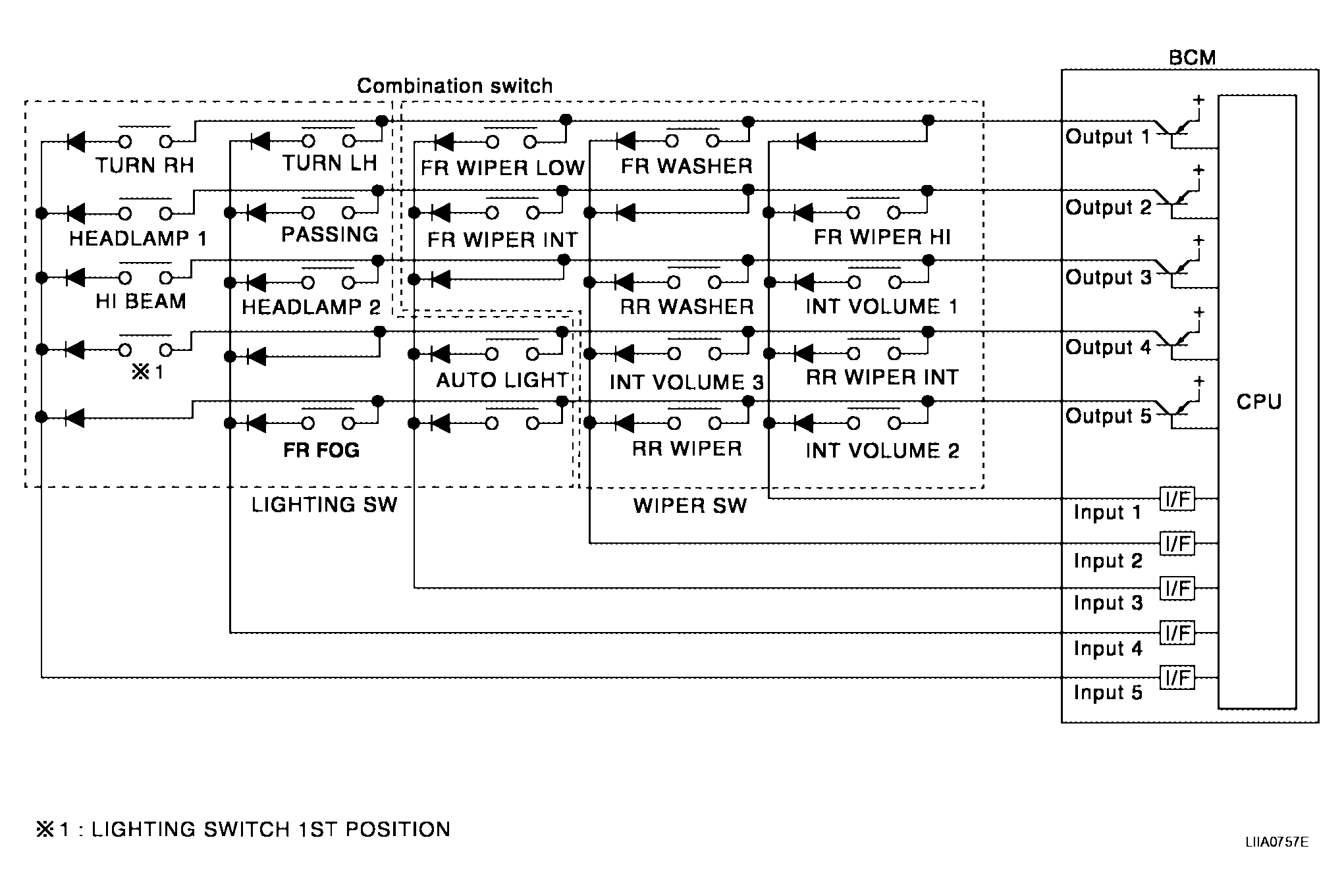

  Fig 1: Combination Switch - Wiring Diagram
  Courtesy of NISSAN MOTOR CO., U.S.A.
BCM - Operation table of combination switch
- BCM reads operation status of combination switch by the combination shown in the following table.

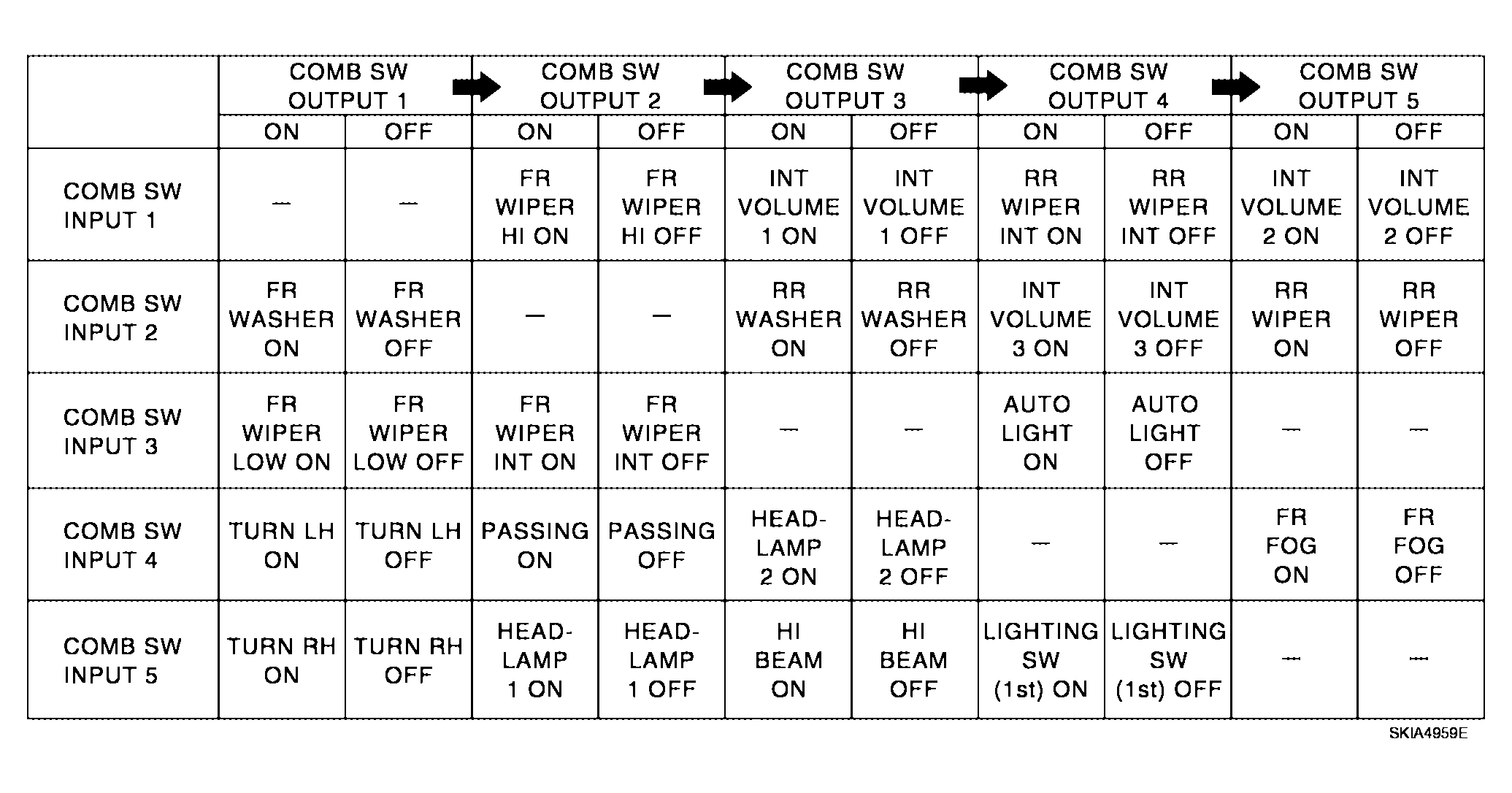

Fig 2: Combination Switch 1st Position Table
Courtesy of NISSAN MOTOR CO., U.S.A.
