2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Remove snap ring and retaining pin using suitable tool. Then remove drum cam from control shift rod.

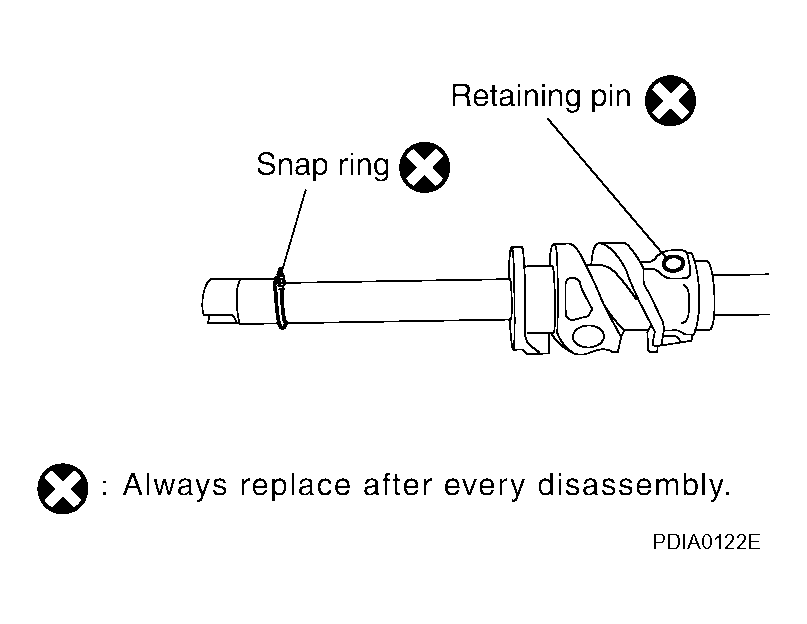

Fig 1: Removing Snap Ring And Retaining Pin Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retaining pin from L-H shift rod, using suitable tool.
Remove 2-4 shift bracket

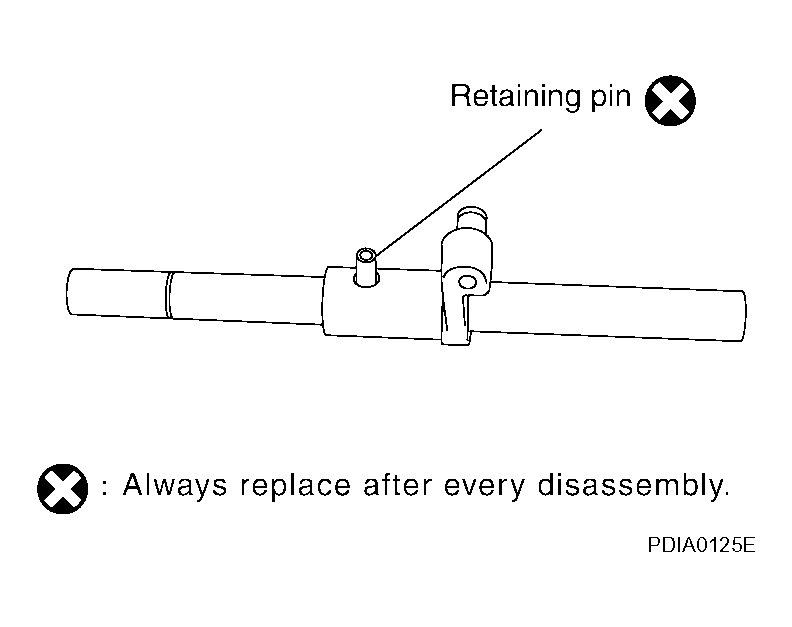

Fig 2: Removing Retaining Pin From L-H Shift Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retaining ring from 2-4 shift fork, using suitable tool.
Remove fork guide collar and 2-4 shift fork spring from 2-4 shift fork

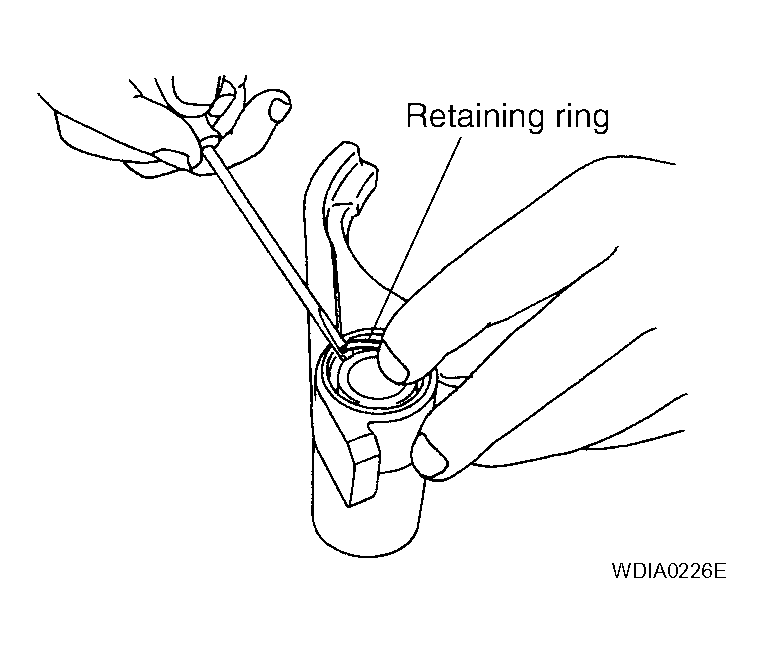

Fig 3: Removing Retaining Ring From 2-4 Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
