Key Switch

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminals of the key switch and key lock solenoid.

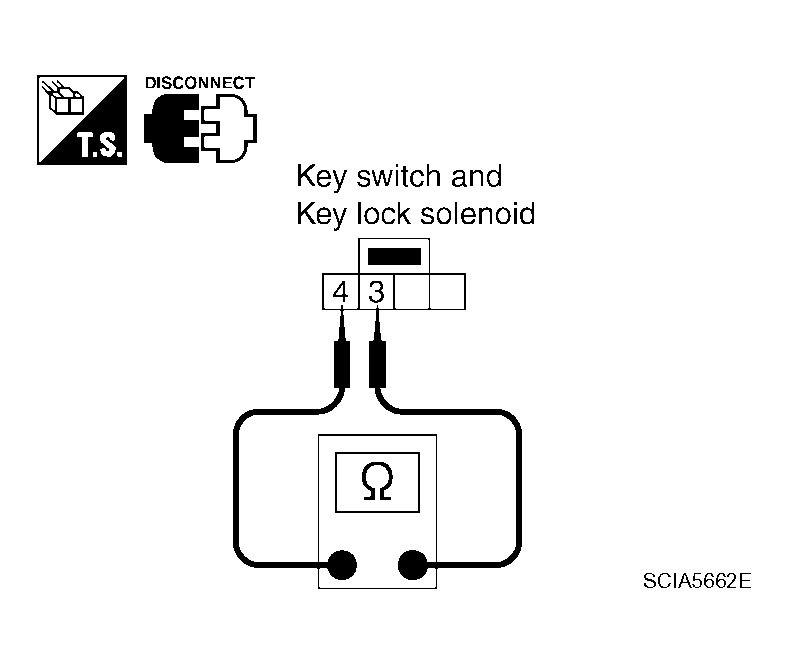

Fig 1: Checking Continuity Between Terminals Of Key Switch And Key Lock Solenoid

Courtesy of NISSAN MOTOR CO., U.S.A.

CONDITION CONTINUITY

Condition	Terminal No.	Continuity
Key inserted	3 - 4	Yes
Key withdrawn	3 - 4	No
