2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Consult-II Basic Operation Procedure
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

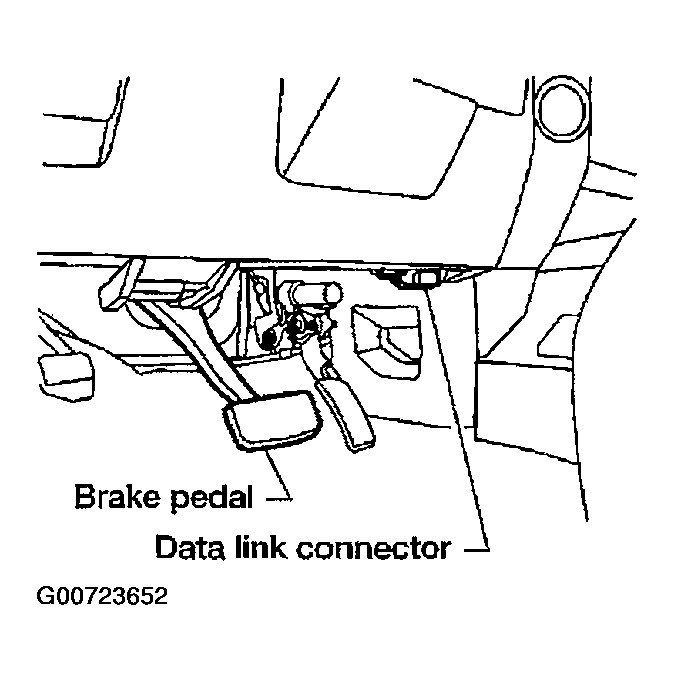

- With the ignition switch OFF, connect "CONSULT-II" and CONSULT-II CONVERTER" to the data link connector, and turn ignition switch ON.

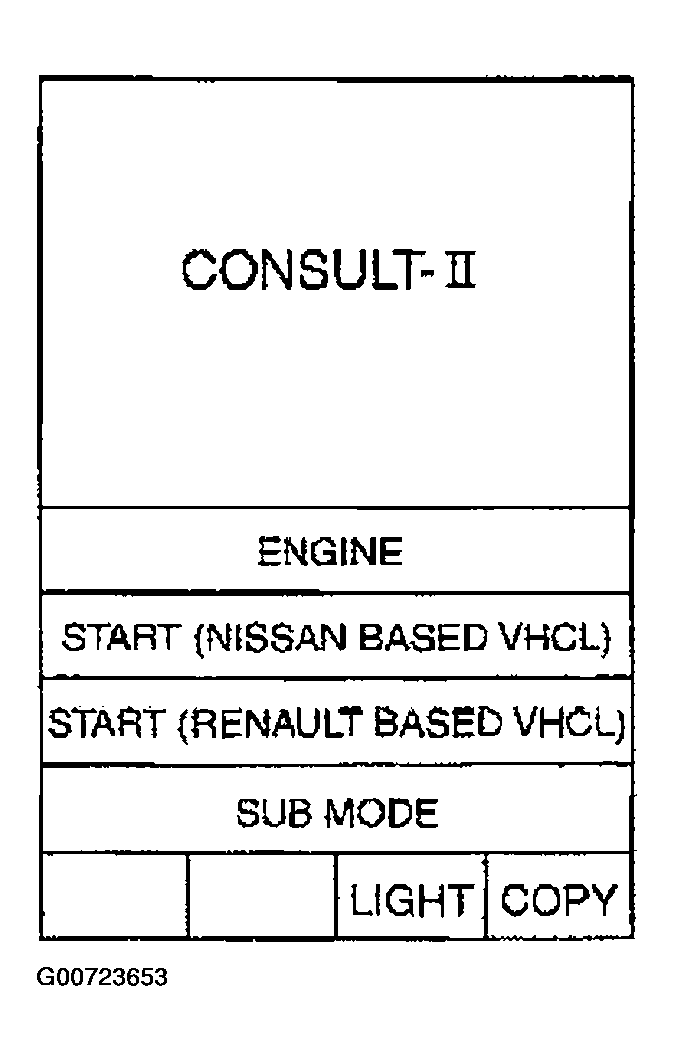

- Touch "START (NISSAN BASED VHCL)".

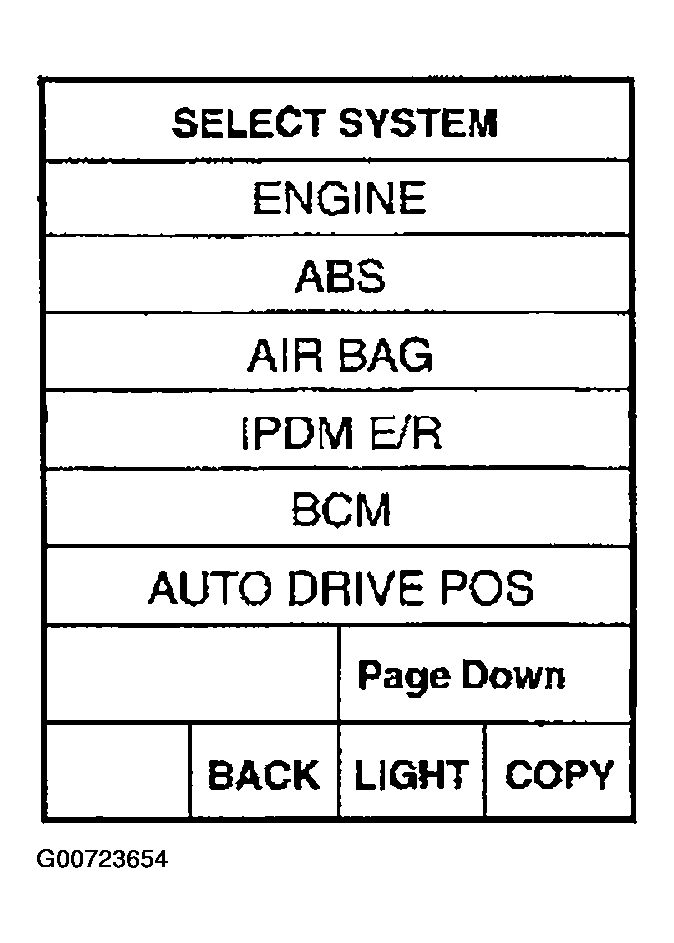

- Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II INSPECTION PROCEDURE .

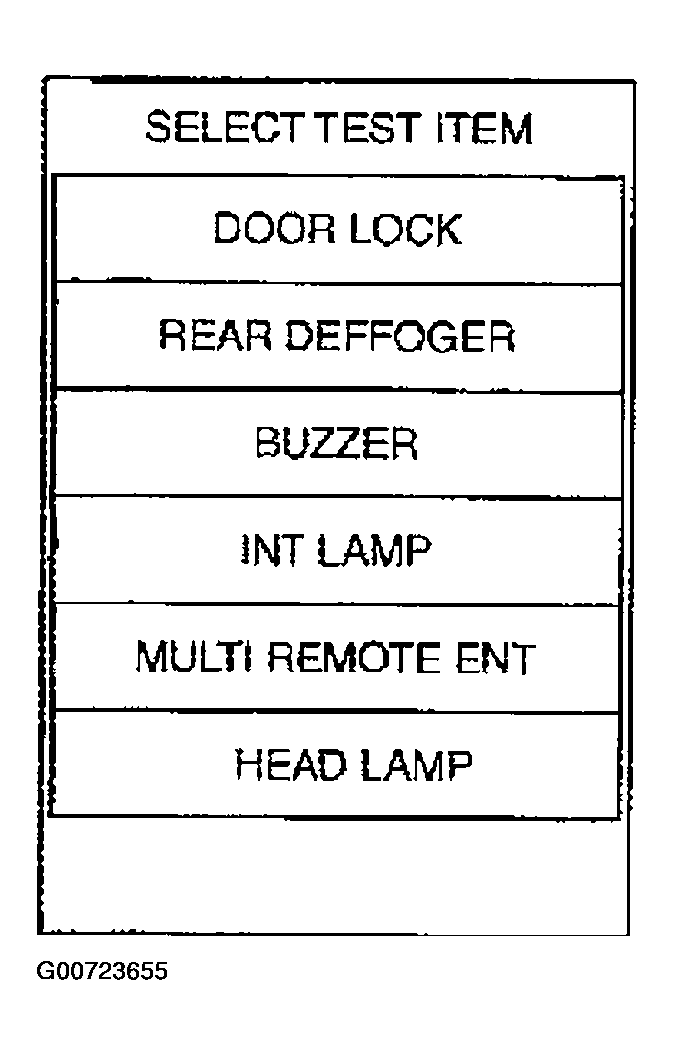

- Touch "BUZZER" in "BCM".
- Select "DATA MONITOR" or "SELF-DIAG RESULTS".
