2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
4. Check Fuel Level Sensor Circuit
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

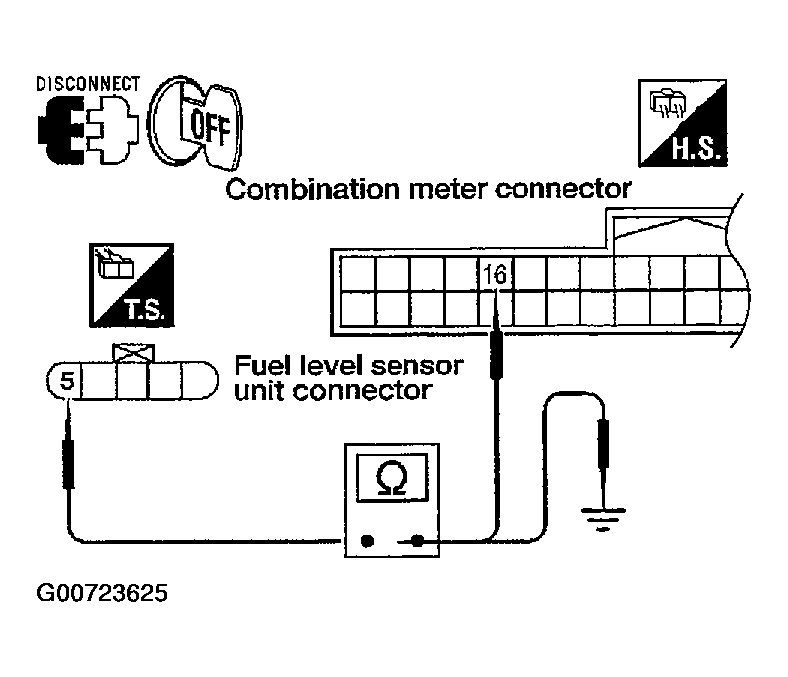

- Check continuity between combination meter harness connector M24 terminal 16 (B/P) and fuel level sensor unit and fuel pump harness connector C5 terminal 5 (B/P).
- Continuity should exist.
- Check continuity between fuel level sensor unit and fuel pump harness connector C5 terminal 5 (B/P) and ground.
- Continuity should not exist.
OK or NG
OK >> GO TO 5
NG >> Repair harness or connector.
