2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Disassembly (A/T Models)

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the snap ring.
Remove the retaining pin.
Remove the drum cam from the control shift rod.

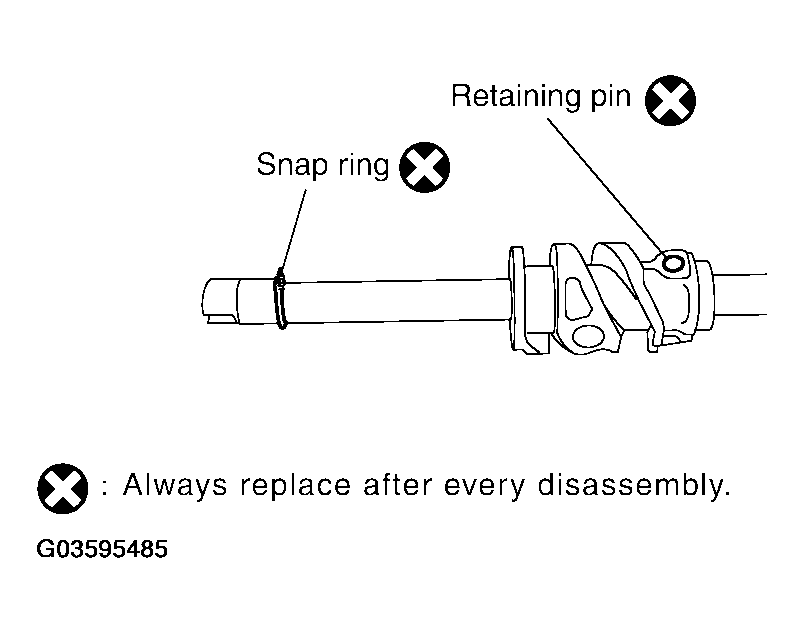

Fig 1: Removing The Snap Ring And Retaining Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retaining pin from the L-H shift rod.
Remove the 2-4 shift bracket.

Fig 2: Removing Retaining Pin From L-H Shift Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retaining ring from the 2-4 shift fork, using suitable tool.
Remove the fork guide collar and 2-4 shift fork spring from the 2-4 shift fork.

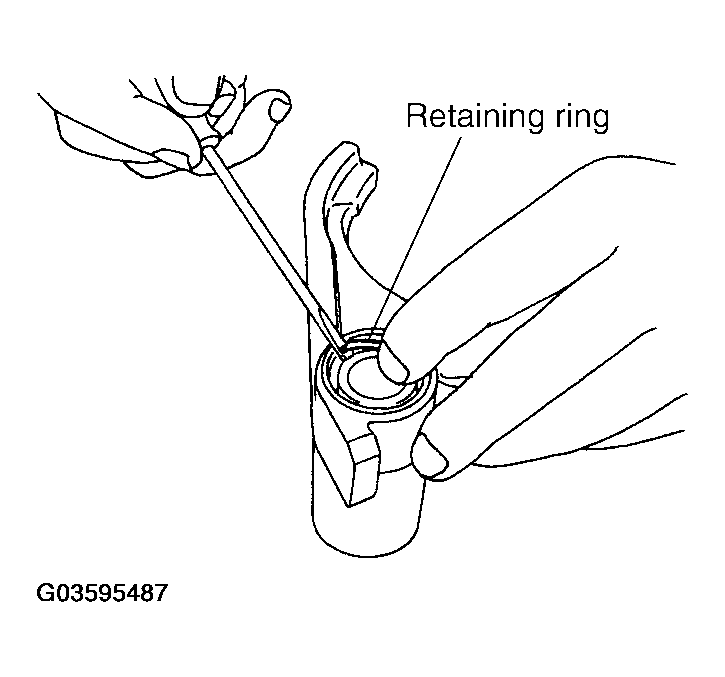

Fig 3: Removing The Retaining Ring From The 2-4 Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
