2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

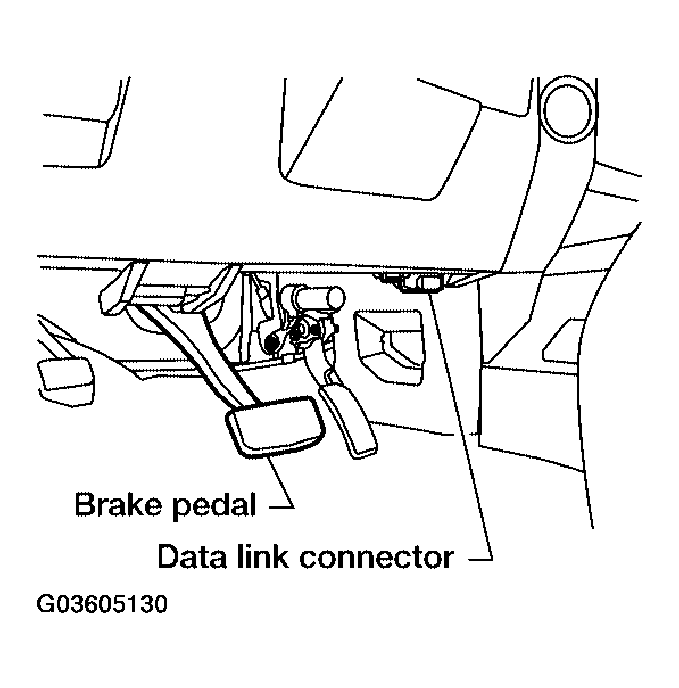

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

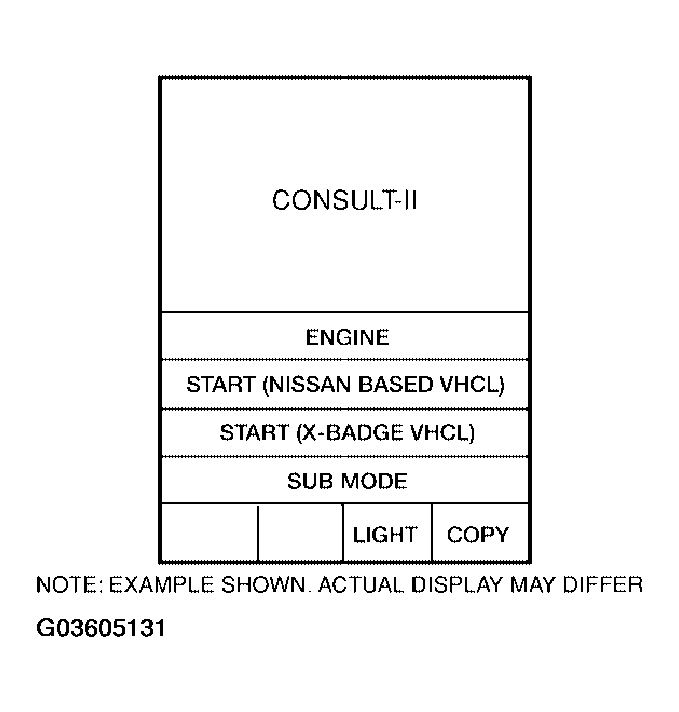

Fig 2: CONSULT-II Display - "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.

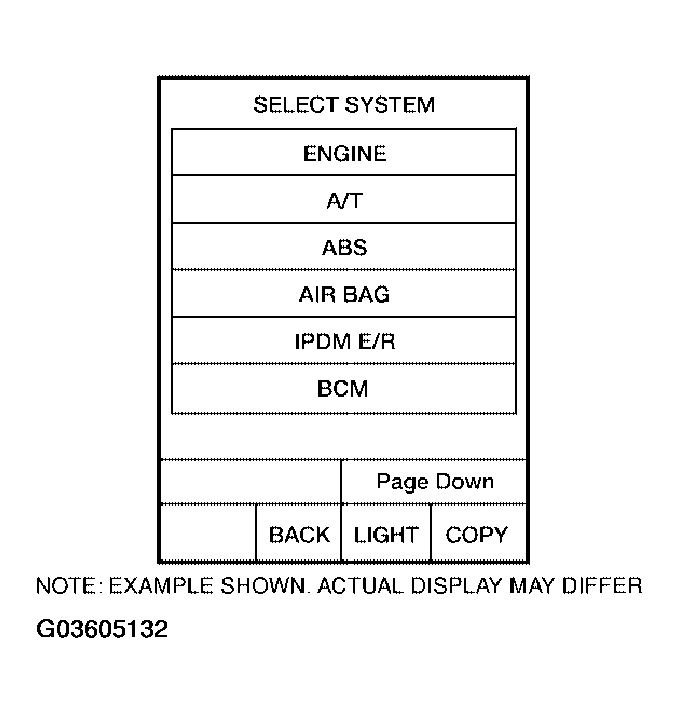

Fig 3: CONSULT-II Display - "BCM" On "SELECT SYSTEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select item to be diagnosed on "SELECT TEST ITEM" screen.

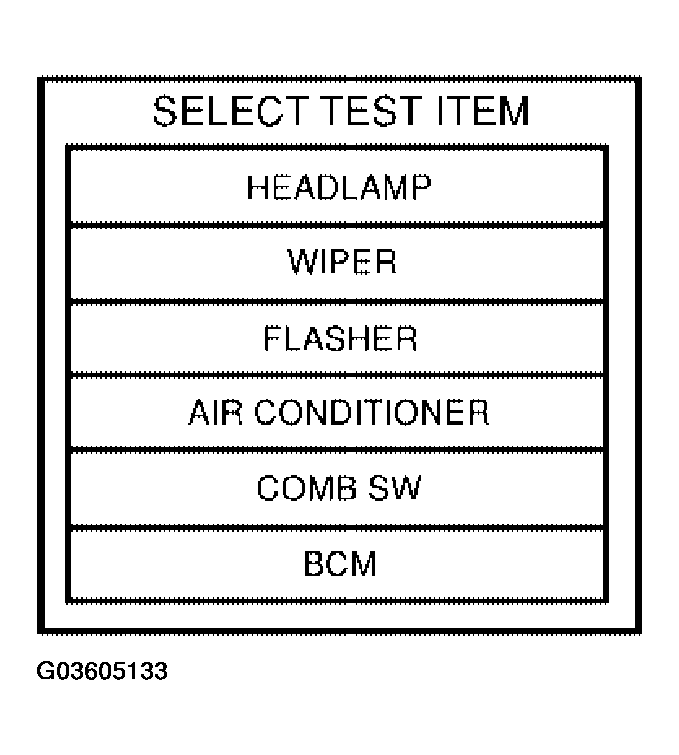

Fig 4: CONSULT-II Display - "SELECT TEST ITEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
