2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

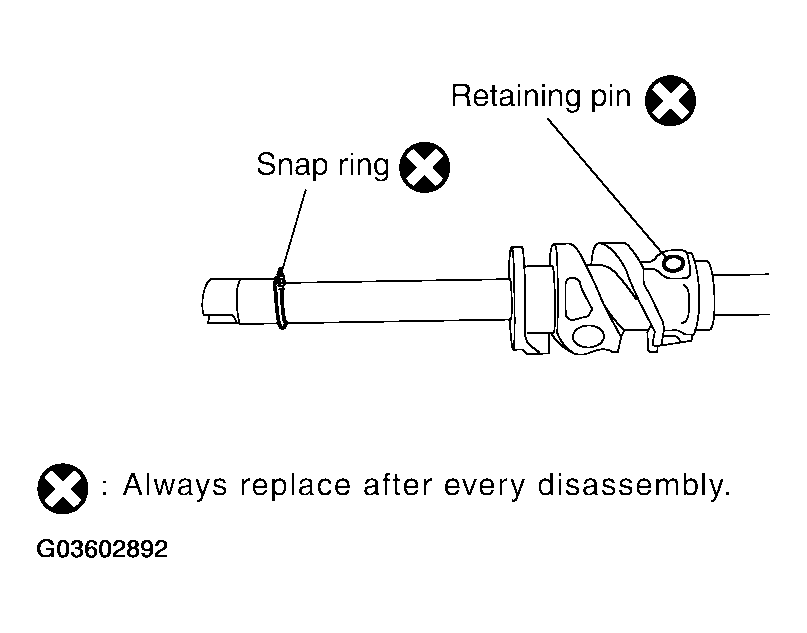

Remove snap ring and retaining pin using suitable tool. Then remove drum cam from control shift rod.

Fig 1: Removing Snap Ring And Retaining Pin
Courtesy of NISSAN MOTOR CO., U.S.A.

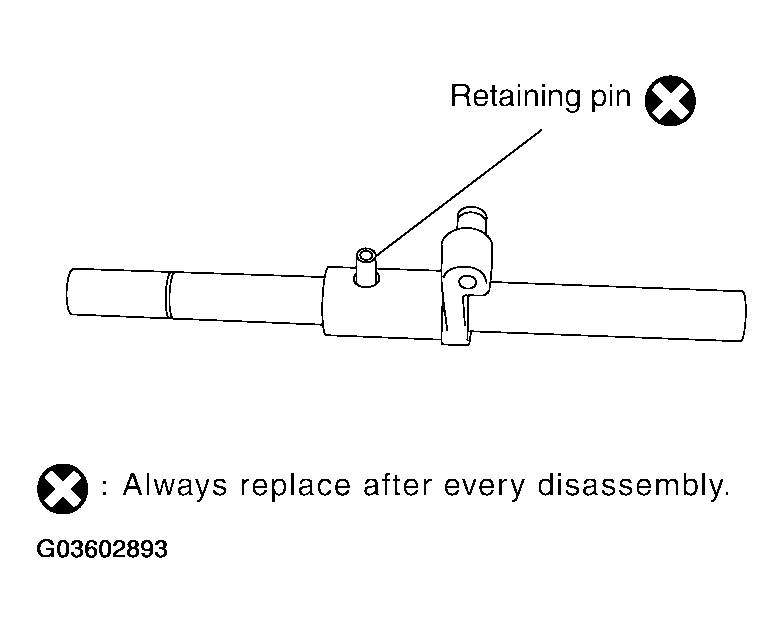

Remove retaining pin from L-H shift rod, using suitable tool.

Fig 2: Removing Retaining Pin From L-H Shift Rod

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove 2-4 shift bracket

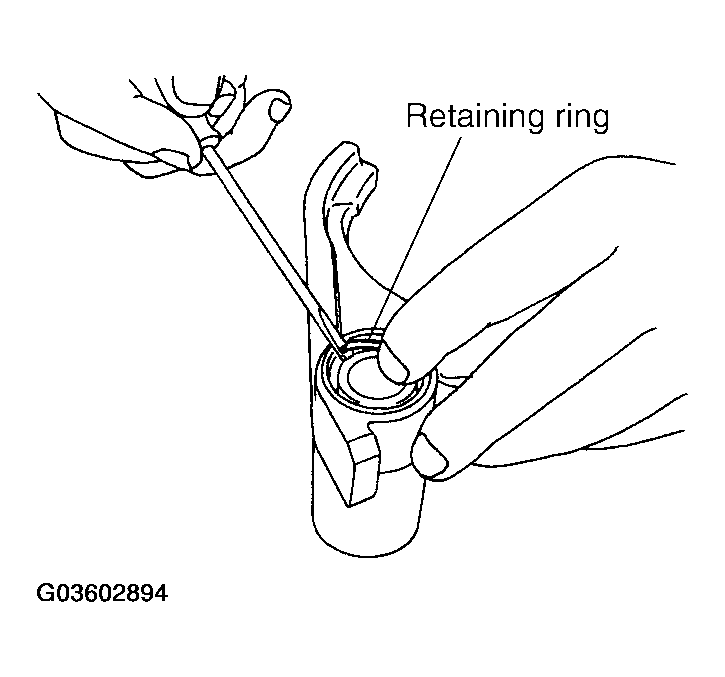

Remove retaining ring from 2-4 shift fork, using suitable tool.

Fig 3: Removing Retaining Ring From 2-4 Shift Fork

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove fork guide collar and 2-4 shift fork spring from 2-4 shift fork
