Fuel Level Sensor Unit Check
For removal, refer to "REMOVAL AND INSTALLATION ".
Check Fuel Level Sensor Unit and Fuel PumpΒ

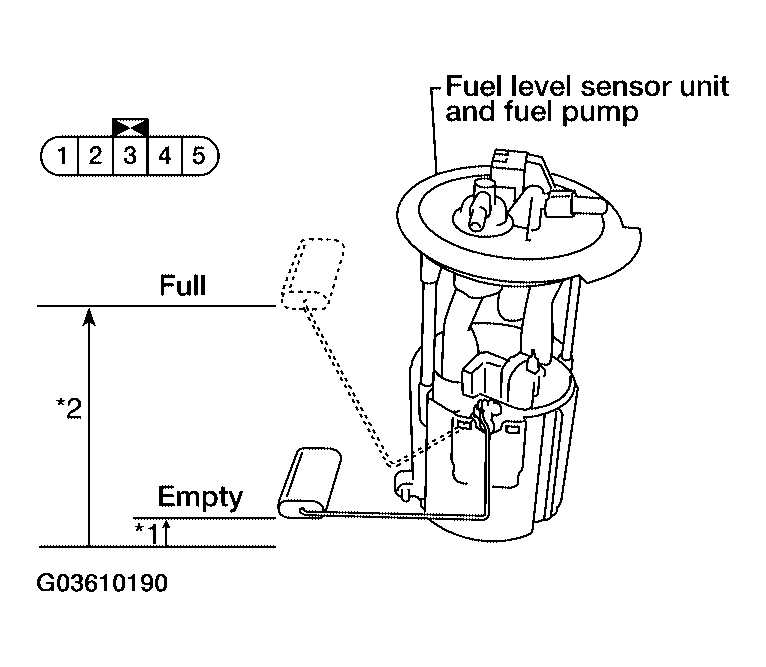

Check resistance between fuel level sensor unit and fuel pump connector terminals 2 and 5.
| Terminals | Float position mm (in) | Resistance value Ξ© (Approx.) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5 | (1) | Empty | 25.86 (1.02) | 81.66 | ||||
| (2) | Full | 254.6 (10.02) | 6.98 | ||||||
|
|||||||||
