2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Removal and Installation of BCM: Removal
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to
"CONFIGURATION ".
- Disconnect negative battery cable.
- Remove instrument panel storage bin. Refer to "REMOVAL AND INSTALLATION - INSTRUMENT PANEL STORAGE BIN ".
- Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION - INSTRUMENT LOWER PANEL (LH) ".
- Disconnect switch assembly.

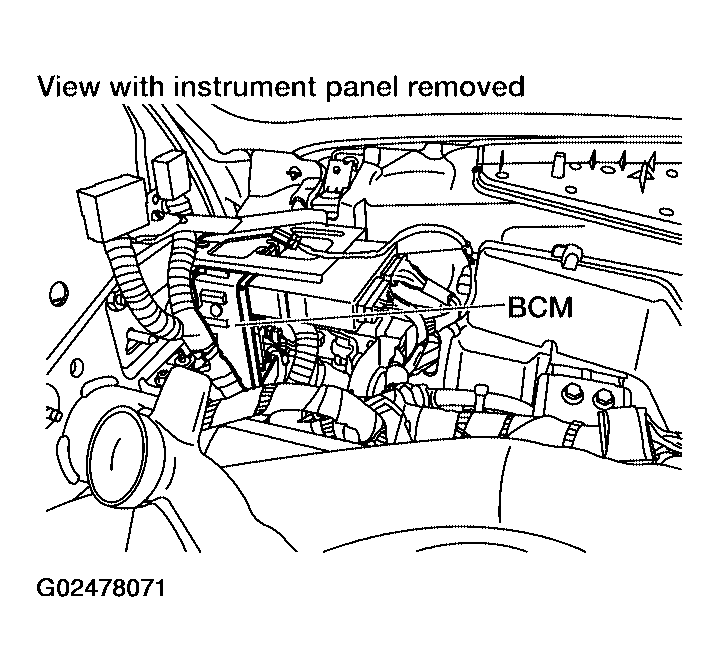

- Remove screw and release BCM.
- Disconnect connectors and then remove BCM.
