2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Without CONSULT-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

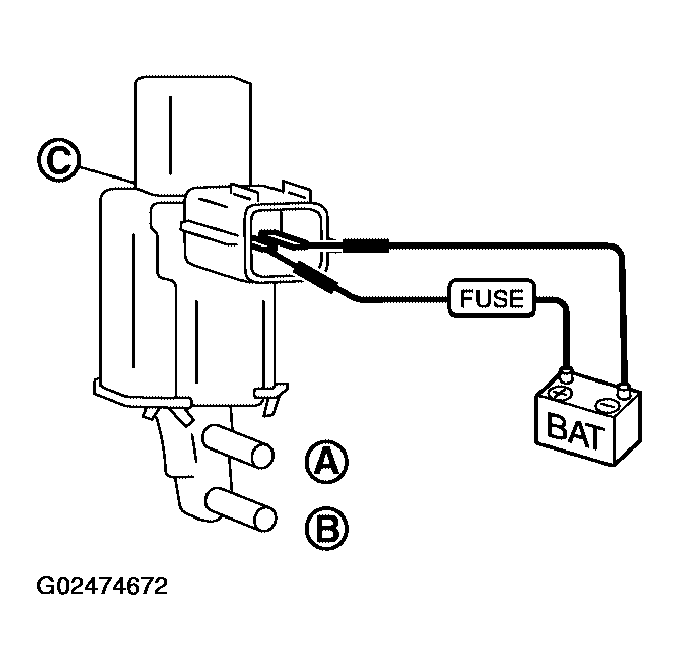

Check air passage continuity and operation delay time under the following conditions.
AIR PASSAGE CONTINUITY TABLE
| Condition | Air passage continuity between A and B | Air passage continuity between A and C |
|---|---|---|
| 12V direct current supply between terminals 1 and 2 | Yes | No |
| No supply | No | Yes |
- Operation takes less than 1 second.
