2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
With CONSULT-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.

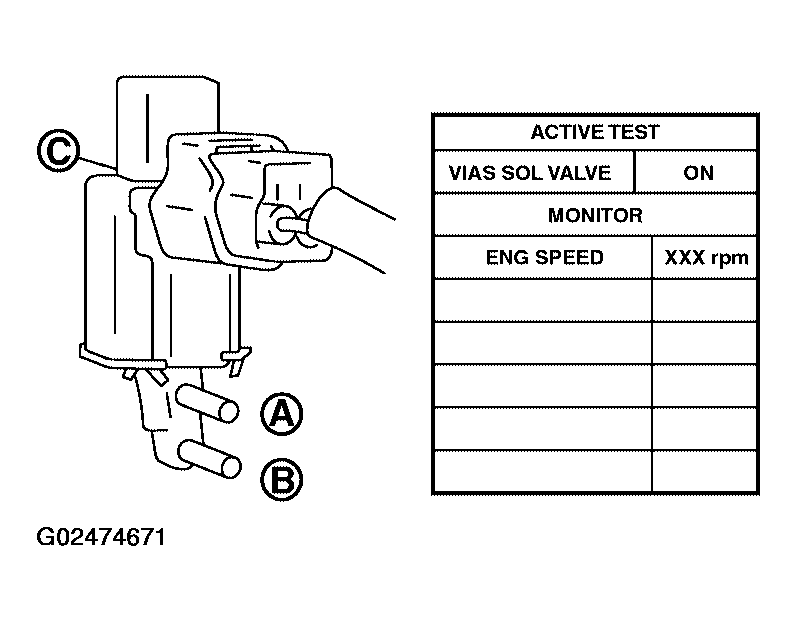

- Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
- Check air passage continuity and operation delay time under the following conditions.AIR PASSAGE CONTINUITY TABLE
Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C ON Yes No OFF No Yes - Operation takes less than 1 second.
