Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK EGR VOLUME CONTROL VALVE POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect EGR volume control valve harness connector.

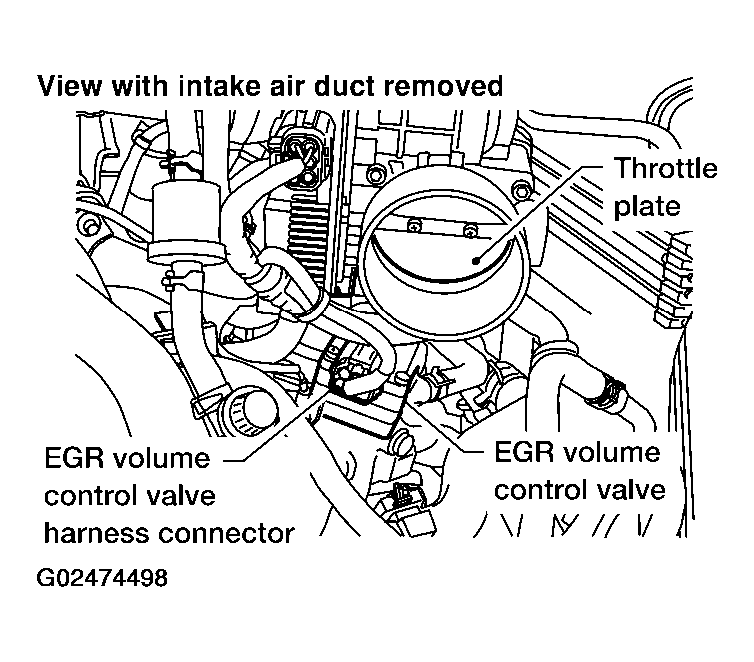

      Fig 1: Disconnecting EGR Volume Control Valve Harness Connector
      G02474498Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch ON.
    4. Check voltage between EGR volume control valve terminals 2, 5 and ground with CONSULT-II or tester.

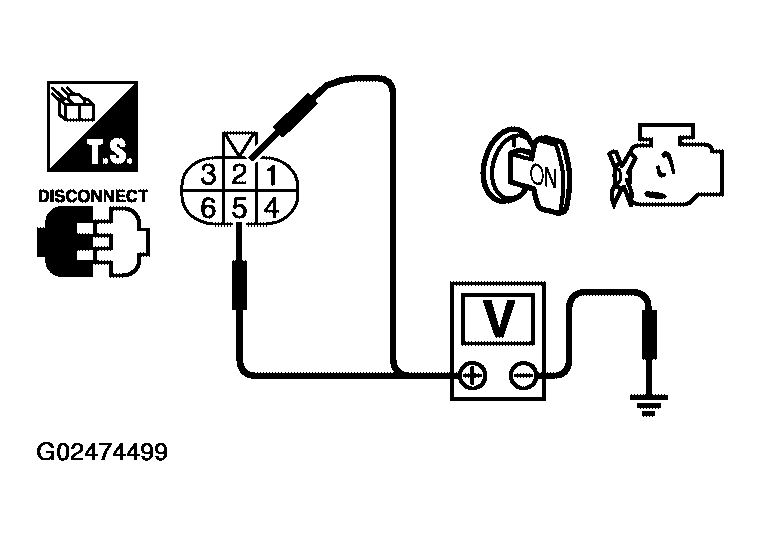

      Fig 2: Checking Voltage Between EGR Volume Control Valve Terminals 2, 5 & Ground
      G02474499Courtesy of NISSAN MOTOR CO., U.S.A.
      • Voltage: Battery voltage

    OK or NG

    • OK: GO TO  3.
    • NG: GO TO 2.
  2. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E5, F14
    • IPDM E/R harness connector E122
    • Harness for open or short between EGR volume control valve and IPDM E/R
    • Harness for open or short between EGR volume control valve and ECM
    • : Repair harness or connectors.
  3. CHECK EGR VOLUME CONTROL VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminals and EGR volume control valve terminals as follows.

      Refer to WIRING DIAGRAM .

      TERMINALS REFERENCE TABLE

      ECM terminal EGR volume control valve
      17 6
      18 3
      19 4
      20 1
      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK EGR VOLUME CONTROL VALVE

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 5.
    • NG: Replace EGR volume control valve.
  5. CHECK EGR TEMPERATURE SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 6.
    • NG: Replace EGR temperature sensor.
  6. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    • : INSPECTION END
