Lift up drive wheels.
Start engine (TCS switch or VDC switch OFF) and warm it up to normal operating temperature.
Turn ignition switch OFF, wait at least 10 seconds.
Start engine and wait at least 70 seconds.
Set voltmeter probes to ECM terminals 32 (EVAP control system pressure sensor signal) and ground.
Check EVAP control system pressure sensor value at idle speed and note it.

Establish and maintain the following conditions for at least 1 minute.

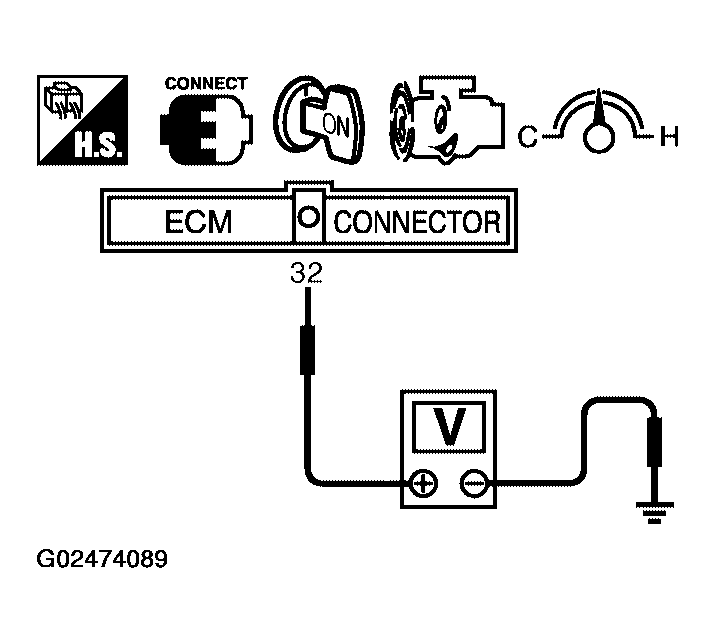

Fig 1: Measuring Voltage Between Terminal 32 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

SWITCH POSITION REFERENCE TABLE

Item	Condition
Air conditioner switch	ON
Headlamp switch	ON
Rear window defogger switch	ON
Engine speed	Approx. 3, 000 RPM
Gear position	Any position other than P, N or R

Verify that EVAP control system pressure sensor value stays 0.1V less than the value at idle speed (measured at step 6) for at least 1 second.
If NG, go to "DIAGNOSTIC PROCEDURE ".
