Consult-II Basic Operation

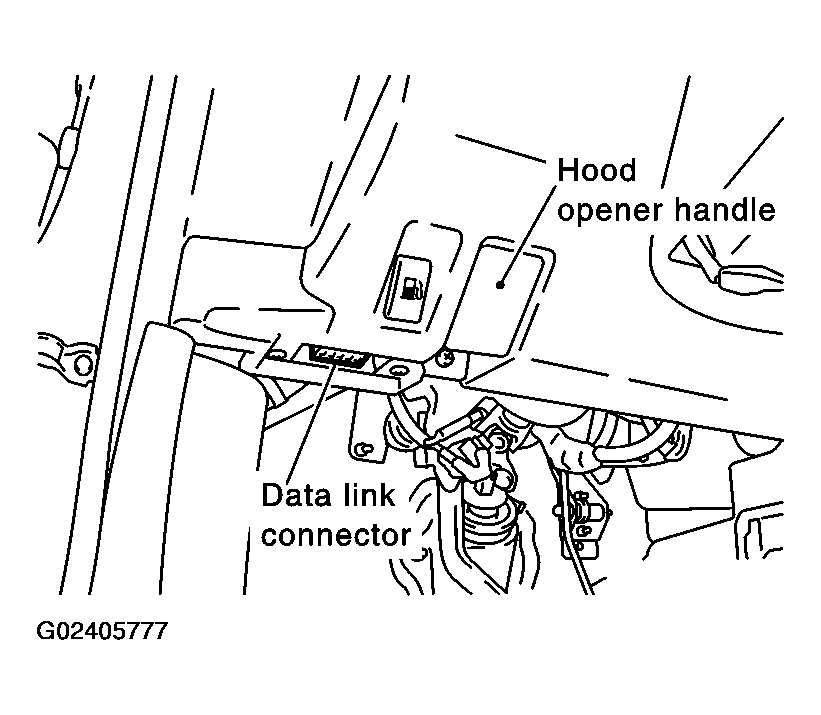

- With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.

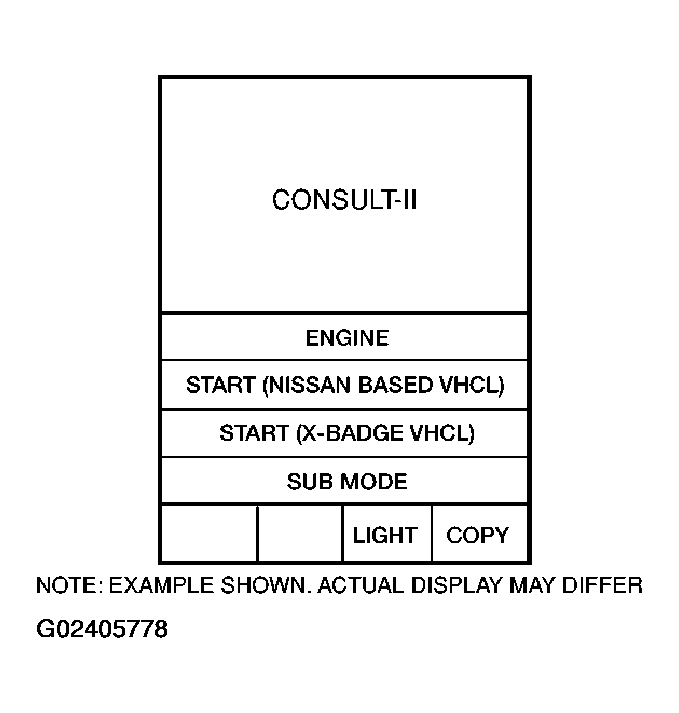

- Touch "START (NISSAN BASED VHCL)".

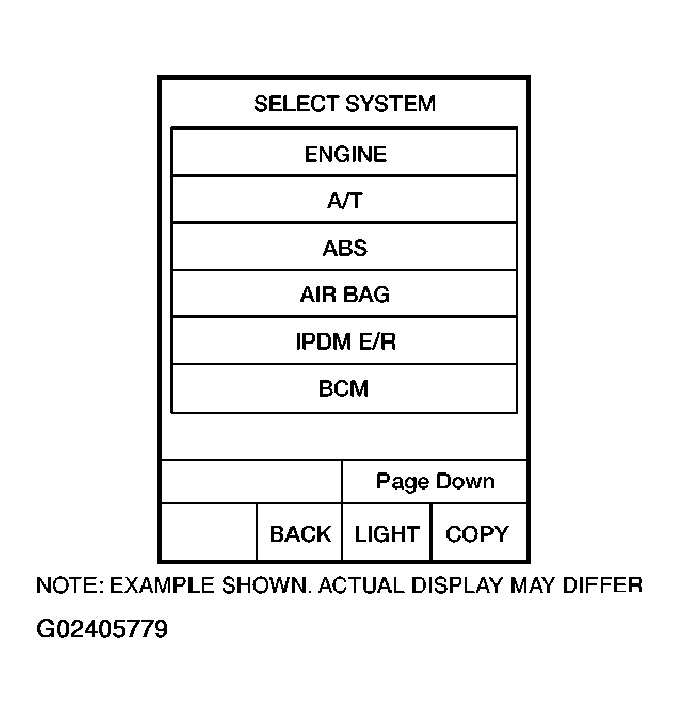

- Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not displayed, print "SELECT SYSTEM" screen, then refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

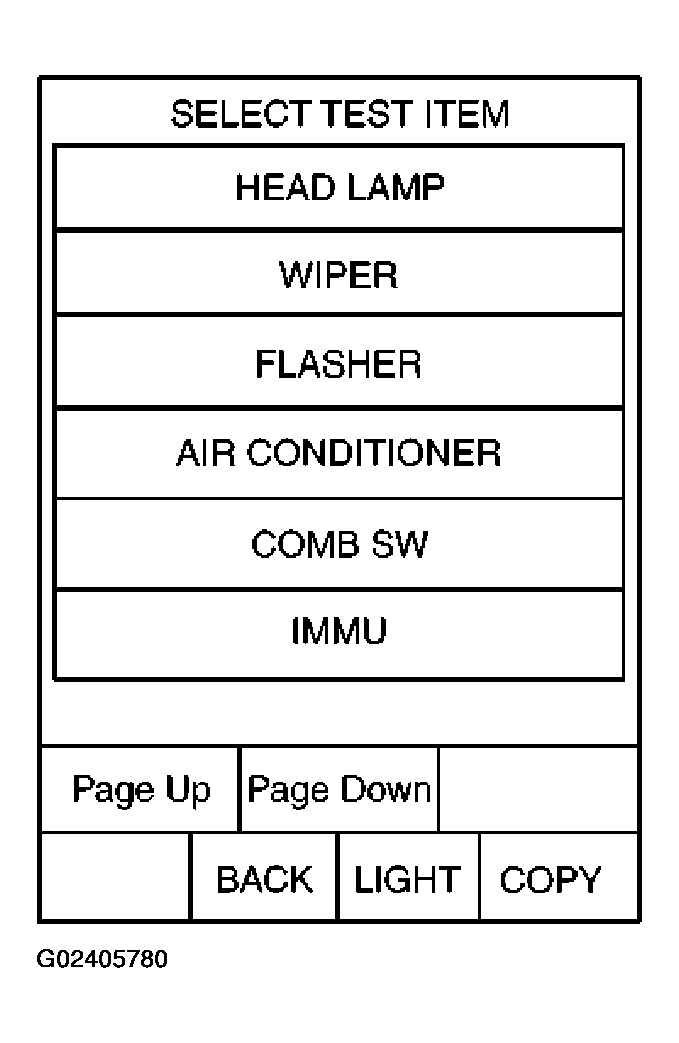

- Touch "COMB SW".
